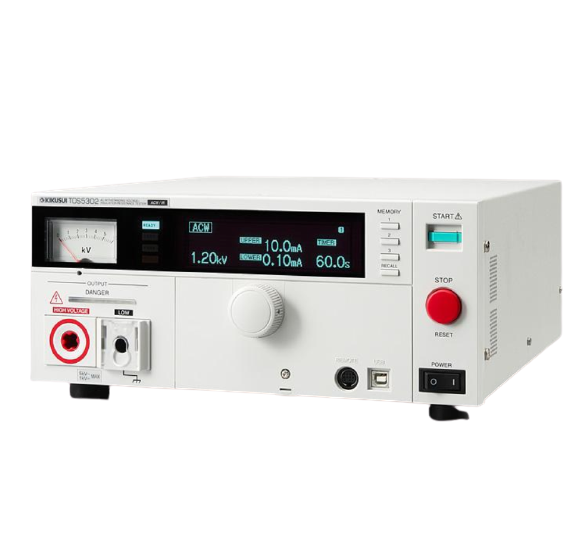

KIKUSUI TOS5300 高压和阻抗电阻测试仪 (0.00 kV ~ 5.50 kV)

1. Withstanding voltage tester

- AC Output section:

Output range: 0.05 kV ~ 5.00 kV

Setting range: 0.00 kV ~ 5.50 kV

Max. rated output: 500 VA (5 kV/100 mA)

Max. rated voltage: 5 kV

Max. rated current: 100 mA (when the output voltage is 0.5 kV or greater)

Output voltage waveform: sine

2. Insulation resistance test section

Output voltage: 25 V, 50 V, 100 V, 125 V, 250 V, 500 V, 1000 VDC (negative)

Max. rated load: 1 W (-1000 V DC / 1 mA)

Max. rated current: 1 mA

3. General

Power supply

Nominal voltage range(allowable voltage range): 100 VAC ~ 240 VAC (90 VAC ~ 250 VAC)

Power consumption:

When no load is connected (READY) 100 VA or less

When rated load isconnected 800 VA max.

Allowable frequency range: 47 Hz ~ 63 Hz

Weight: Approx. 14 kg (30.9 lb.)

Accessories:

Power cord : 1pc.

High test lead (TL31-TOS) : 1set (1 red wire and 1 black wire, each with alligator clips); 1.5 m

D-sub 25-pin plug : 1set ; assembly type

High-voltage warning sticker : 1pc.

User’s manual : 1pc. / CD-R : 1pc.
