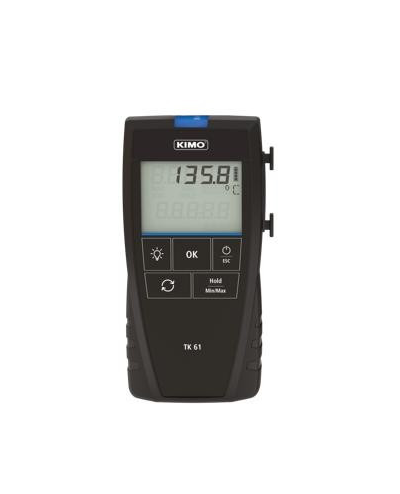

KIMO TK61 Thermocouple temperature (K, J, T, S)

MEASURING RANGES

Tempéarture thermocouple - K : -200.00 °C ... 1300.00 °C

Tempéarture thermocouple - J: -100.00 °C ... 750.00 °C

Tempéarture thermocouple - T: -200.00 °C ... 400.00 °C

Tempéarture thermocouple - S: 0.00 °C ... 1760.00 °C

TECHNICAL DETAILS

Parameters: Temperature

Displays: 4-line display

IP Protection: IP 54

Battery life: 180 hours

Standards

2011/65/EU RoHS II

2012/19/EU WEEE

2014/30/EU EMC

2014/35/EU Low Voltage

Power supply: 4 batteries AAA LR03 1.5 V

Probe type: Wire probe

Protective cover: No

Interchangeable module: No

INSTRUMENT DIMENSIONS

Length: 147.90 mm

Width: 76.70 mm

Height: 34.20 mm

Weight: 210.00 g

OPERATING TEMPERATURE

Min: 0.00 °C

Max: 50.00 °C

STORAGE TEMPERATURE

Min: -20.00 °C

Max: 80.00 °C
