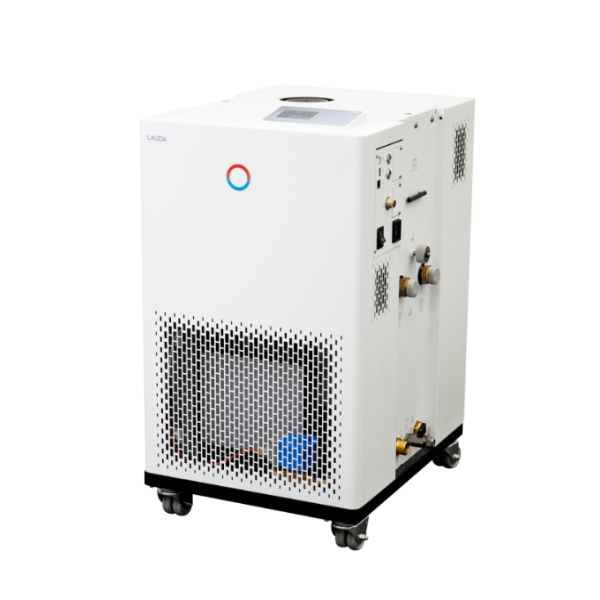

Lauda IN 4 XTW Integral Process Thermostat (25 ~ 320°C, 3.3 ~ 9.5 L)

Working temperature range: 25 ... 320°C

Ambient temperature range: 5 ... 40 °C

Temperature stability: 0.1 ± K

Heater power max.: 3.5 kW

Max. power consumption: 3.7 kW

Current consumption: 16 A

Max. discharge pressure: 3.1 bar

In / Outlet connection thread (outside): M30 x 1.5

Inlet/outlet hose size: 3/4″

Min. filling volume: 3.3 L

Max. filling volume: 9.5 L

Water cooling connection thread (inside): 3/4 ″

Recommended cooling water temperature: 15 °C

Cooling water flow rate: 11 L/min

Pressure difference cooling water min.: 3 bar

Maximal pressure cooling water: 10 bar

Dimensions (WxDxH): 430 x 550 x 760 mm

Weight: 52 kg

Noise level: 52 dB(A)

Power supply: 230 V; 50 Hz
