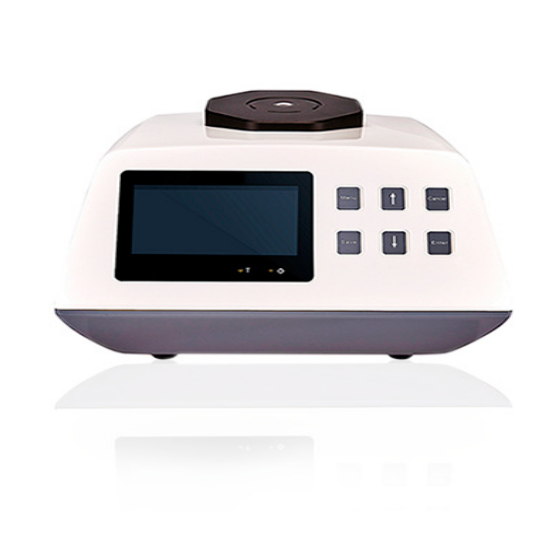

Lisun DSCD-900 承载式分光测色仪(400-700nm)

Illumination: d/8(Diffused illumination, 8°viewing) (conform to CIE No.15、 ISO 7724/1、 ASTM E1164、 DIN 5033 Teil7、 JIS Z8722 Condition c standards)

Size of integrating sphere Φ40mm,Alvan diffused reflection surface coating

Illumination Light source: CLEDs(entire wavelength balanced LED light source)

Sensor: dual optical path sensor array

Wavelength range: 400-700nm

Wavelength interval: 10nm

Half spectral width: 5nm

Reflectivity range: 0-200%

Resolution: 0.01%

Observer angle: 2°/10°

Measurement Light Source: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8, F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF

Data being displayed: Reflectance graph/value, chromatic value, color difference values, color assessment results, color tendency, display measurement area, history color value simulation, manual input standard sample, generate measurement reports

Measurement time: About 1 second

Measurement time interval 0.5 second

Measuring caliber: Φ11mm

Color space: CIE-L*a*b,L*C*h,L*u*v, XYZ, Yxy, reflectivity, Hunterlab, Munsell MI,CMYK,RGB,HSB

Color difference formulas: ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555color classification

Other colorimetric indices: WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Tint(ASTM E313,CIE,Ganz),metamerism index Milm, adhesive/changing color fastness, ISO luminance,8 gloss, A density, T ensity, E ensity, M ensity

Repeatability

light splitting reflectivity: standard deviation within 0.08%

color values: ΔE*ab<=0.015（After calibration, standard deviation of 30 measurements on test white board, 5 second intervals），Maximum: 0.03

Battery capacity: rechargeable, 20000 continuous tests, 7.4V/6000mAh

Interface: USB

Data storage: 40000 test result

Light source longevity: 5 years, 1.5 million tests

Inter-instrument agreement: ΔE*ab within 0.2 (BCRA color charts II, average of the 12 charts)

Size: 350*300*200mm(L*W*H)

Weight:  4.5kg

Display:  5 inches True color screen

Work temperature range: 0~45℃, relative humidity 80% or below(at 35°C), no condensation

Storage temperature range: -25℃ to 55℃, relative humidity 80% or below(at 35°C), no condensation

Standard accessories: AC power line, operating manual, color QC software, driving software, electric operating manual, USB cable, white/black calibration tile, verification certification

Optional accessories: powder molding device, cuvette, shading cover

Color matching system: Matches

UV light source: without
