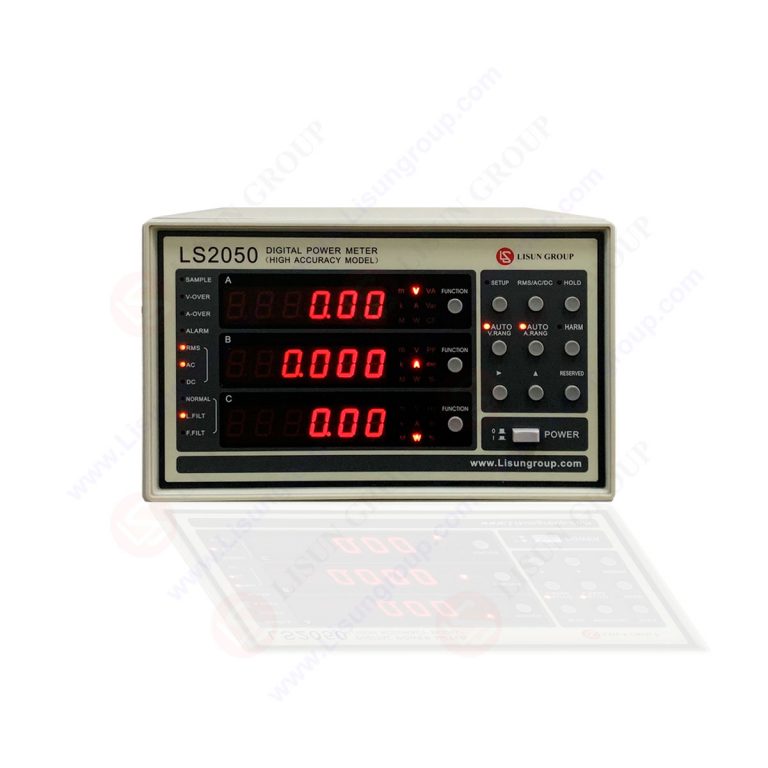

Lisun LS2050 数字功率计 (高精密型号) (AC600V/20A, DC1000V/20A)

• It is fully meet LM-79-19 request.

• DC/AC Frequency Range: 0.5Hz-100kHz

• This instrument provides two kinds of method to calculate total harmonic distortion (THD), IEC and CSA


AC Specifications :: Accuracy

Voltage range: 1V~600V (CF=1.6) :: ± (0.1%reading+0.1%range+1character)

Current range: 5mA~20A (CF=1.6) :: ± (0.1%reading+0.1%range+1character)

Power range: 0.15W~10KW :: ± (0.1%reading+0.1%range+1character)

Power factor range: 0.000~±1.000 :: ± (0.002+0.001/reading+1character)

Frequency :: ± 0.1%reading


DC Specifications Accuracy

Voltage range: 1V~1000V :: ± (0.1%reading+0.1%range+1 character)

Current range: 5mA~20A :: ± (0.1%reading+0.1%range+1 character)

Power range: 0.15W~4000W :: ± (0.1%reading+0.1%range+1 character)
