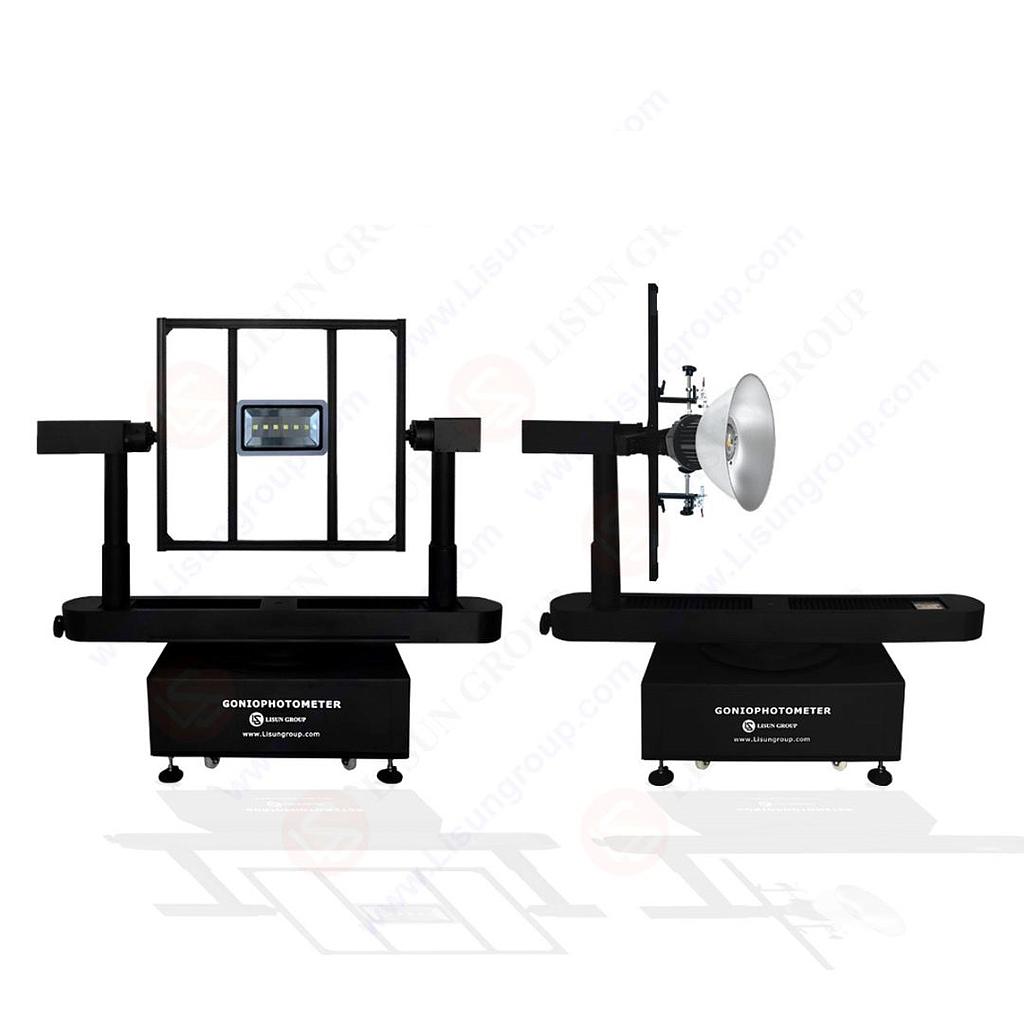

Lisun LSG-1700BCCD Rotation Luminaire Goniospectroradiometer (0.001lx ~ 99.999lx, 380nm ~780nm, 0.2°)

♦ Meets the requirements of CIE, IEC, IES LM-79 & GB standards

♦ The Goniospectroradiometer system=Goniophotometer+Spectroradiometer Integrating Sphere system

♦ The tested luminaries rotates around an angle of (γ)±180°(or 0-360°) and the tested luminaries rotates around itself with an angle of (C)±180°(or 0-360°)

♦ Luminosity Testing Range:

Illuminance 0.001lx~99,999lx;

Light Intensity 1.0cd~10^7 cd(detector)

♦ Angle accuracy:  0.1°(LSG-1800XCCD/LSG-1800BCCD) and 0.2°(LSG-1700BCCD)

♦ Work with high accuracy and quick CCD Spectroradiometer to measure spatial color parameters.

♦ Accuracy of chromaticity coordinate: ±0.0015 or ±0.0005(under A standard lamp)

♦ Spectral Range Wavelength: 380nm ~780nm; Accuracy of wavelength: ±0.5nm

♦ Photometry Accuracy: CIE Class A (Class L is option)

♦ Testing Accuracy: 2%(Under Standard lamp); Stray Light: less than 0.1%

♦ English version software can run in Win7, Win8 or Win10

The max size for the Testing Lamp(Unit: mm)

C-Gamma Test with one Pillar: ∅1600×550 (Diameter*Depth)

B-Beta Test with two Pillars: 700*600(Length*Width)

Max Weight: 40kg


System Configuration:

A. Goniophotometric System

B. SLS-100W DC Standard Light Intensity Lamp

C. Digital Power Meter

D. DC3010 CC & CV DC Power Source

E. AC Power Source

F. CASE-19IN 19inch Standard Instruments Cabinet

G. LMS-9000B High Precision CCD Spectraidomeeter

H. CLAMP-9000 Accessories and Adjustable Tripod for LMS-9000B
