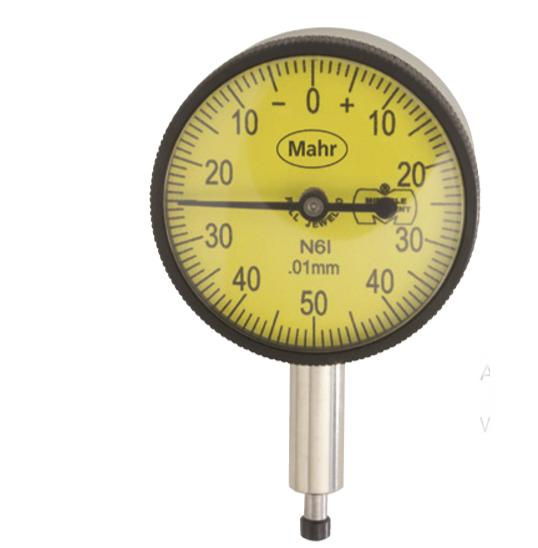

Mahr 2011759 表盘指示器 (N6I, 2.5mm)

Product type: N6I

Measuring span: 2.5mm

Graduation value: 0.01mm

Type of dial face: 0-50-0

Range per rev.: 1mm

Error limit: ± 0.01mm

Standard: ANSI

ANSI/AGD Group: 0

Dial color: yellow

Accessories:

• Contact point, flat, type AL– 61

• Flat back, type BK– 32

• Lug back, type BK– 37

• Post back 7/32”, type BK– 38

• Adjustable back, type BK– 45

• Screw type back 1/4– 28, type BK– 88

• Split bushing .218” x .374” x .5”, type BU– 112

• Contact point, spherical, type PT– 118

• Contact point, taper, type PT– 119

• Contact point, spherical, A = 1/4”, type PT– 204

• Contact point, spherical, A = 3/8”, type PT– 205

• Contact point, spherical, A = 1/2”, type PT– 207

• Contact point, spherical, A = 5/8”, type PT– 208

• Contact point, spherical, A = 3/4”, type PT– 209

• Contact point, spherical, A = 7/8”, type PT– 210

• Contact point, spherical, A = 1”, type PT– 211

• Contact point, spherical, A = 3/32” (normally furnished), type PT-43
