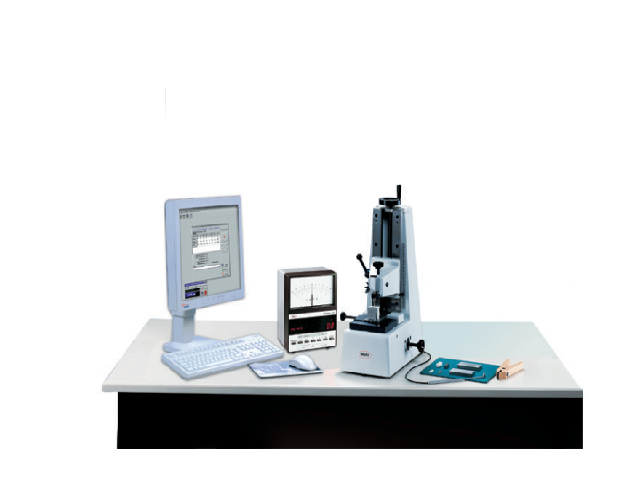

Mahr 826 PC 量块工具 (826 PC,60 mm x 55 mm,0.2mm,± 0.01µm)

APPLICATIONS:Quick and easy high precision testing of European and US gage blocks up to 170 mm in length, as per ISO 3650

Stylus ball radius, upper probe: 1.500000

Stylus ball radius, lower probe: 1.500000

Table surface (A x B) mm: 60 mm x 55 mm

Application range (mm): 0.5 to 170

Type: 826 PC

Direct measuring range (mm):0.2

Repeatability (µm): ± 0.01

Mass (kg): 37

Detail

Datasheet:
