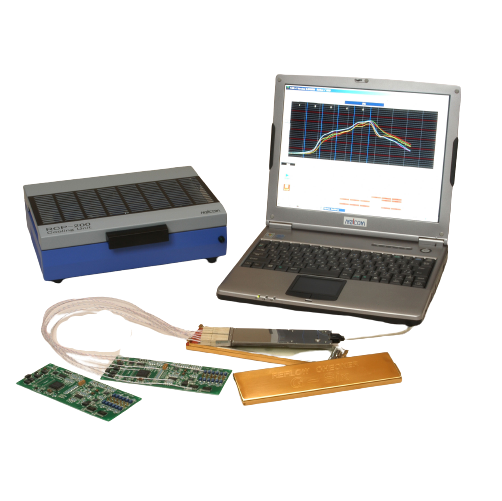

Malcom RCP-200 Compact Reflow Checker (0-300°C)

Measuring Temp. Range: 0-300°C

Measuring points: 1-6 points

Max measuring time: Approx. 90 min. (Sampling Time:0.5 sec.)

                                  Approx. 15 min. (Sampling Time:0.05 sec.)

Sampling time: 0.05, 0.1, 0.2, 0.5, 1.0, 2.0, 4.0 & 8.0 sec. (Arbitrary setup possible)

Temp. accuracy: ±2°C

Input: Thermocouple JIS-K 110Ω max

Power supply: Lithiu Ion Rechargeable Battery

Outer dimension: 200(W)x50(D)x15(H)(mm)

Weight: Approx. 400g

Data transmission method: USB

Reflow profile analysis software: TMR-1
