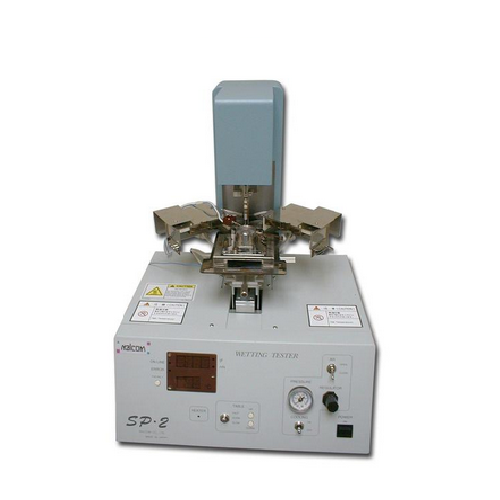

Malcom SP-2 焊接浸胶测试仪 (10gf~ -5gf)

Load sensor

- Principle: Electro-balance sensor

- Measurement range: 10.00gf~-5.00gf

- Measurement accuracy*: ±(10mgf+1 digit)

- Resolution: Less than 900mgf: 0.001 gf More than 900 gf: 0.005gf

Temp. sensor

- Measurement range: 0~300℃

- Measurement accuracy: ±3℃

Melting point: Preset solder paste melting point

Digital output: RS-232C cable (Malcom format)

Air supply: Original air pressure: 0.2~0.5Mpa (Approx. 2~5 kgf/cm2)

Adjustment air: 0.2Mpa (Approx. 2kgf/cm2)

Power supply: AC100V 50/60Hz 700W

Weight: Approx. 20kg
