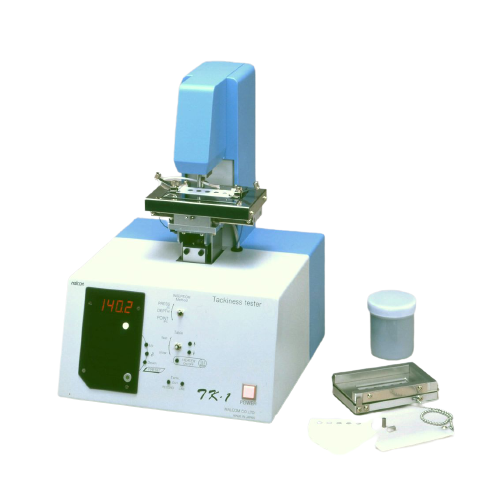

Malcom TK-1S 焊锡膏粘性测试仪 (0-400gf ±2gf; 0.25gf)

Load sensor

- Range: 0-400gf ±2gf

- Resolution: 0.25gf

Measurement methods: (1) Continuous preload, JIS (2) Insertion depth (3) Point preload, IPC

Parameters measured: (1) Tackiness: T gf (2) Real Preload: P gf (3) Real Insert depth: D μm

Preset ranges

- (1) Preload: -20~-400gf

- (2) Time: 0.1-99.9s

- (3) Speed: 1-10mm/s (Continuous preload/Insertion depth)

                    2-600mm/min (Point preload)

- (4) Depth: 20-200μm*

- (5) Temperature: Room temp. +10°C-250°C

Accessories

- Hand printer with 0.2mm mask

- Test piece: 5.1 -mm dia. probe

Outputs digital: RS232C

Weight: Approx. 10kg
