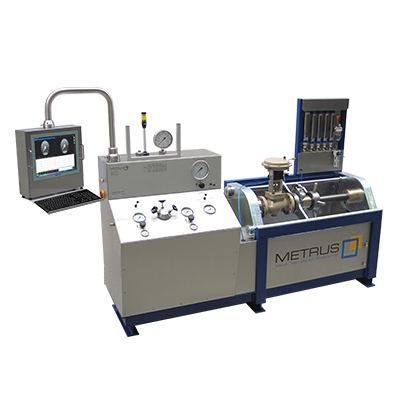

METRUS CSV 50/200 控制阀和切断阀测试台 (50 tons, 10~200mm)

Clamping range: DN10-DN200 ⅜"- 8"

Clamping force: 50 tons

Way of clamping: Automatic sealing heads

Aux. pressure: Air up to 6 bar / 87 PSI

Pressure piping: PN600 bar stainless steel

Shell test with water up to 600 bar / 8700 PSI

Seat leakage test with air up to 6 bar / 87 PSI

Bubble counter

Stainless steel control panel

Anodized, chemical resistant front panel

Stainless steel two chamber water tank

Additional filling pump

Maintenance free vacuum system

Gauge quick connection for tool free change of gauges (2x)

METRUS Precision valves

Options:

External testing adapter - for testing valves larger than DN200 / 8" beside the calmping unit

Gauge turret for 4+1 gauges

Set point adjuster 0-10V and 0-20mA for controlling actuators

Safety pressure limitation system

CRS - Computer Registration System with panel PC

Protection doors
