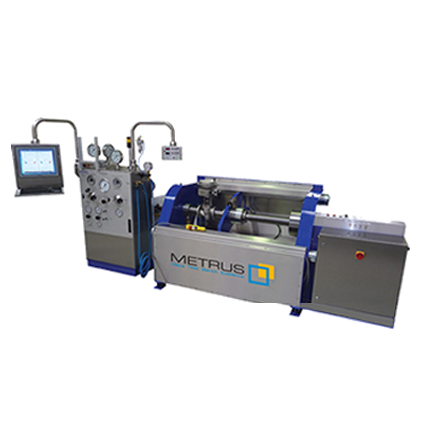

METRUS CSV 80/300 控制阀和切断阀测试台 (80 tons, 15~300mm)

Clamping range: DN15-DN300 1/2“-12“

Clamping force: 80 tons

Way of clamping: automatic seal head

Aux. pressure: air up to 6 bar

Pressure piping: PN600 bar stainless steel

Shell test with water up to 600 bar

Seat leakage test with air up to 6 bar

Electric driven clamping spindle

Stainless steel control panel

Anodized, chemical resistant front panel

Stainless steel two chamber water tank

Dedicated filling pump

Maintenance free vacuum system

Gauge quick connection for tool free change of gauges (2x)

METRUS Precision valves

Options:

External testing adapter - for testing valves larger than DN300 / 12’’ beside the calmping unit

Gauge turret for 4+1 gauges

Set point adjuster 0-10V and 0-20mA for controlling actuators

Safety pressure limitation system

CRS - Computer Registration System with panel PC
