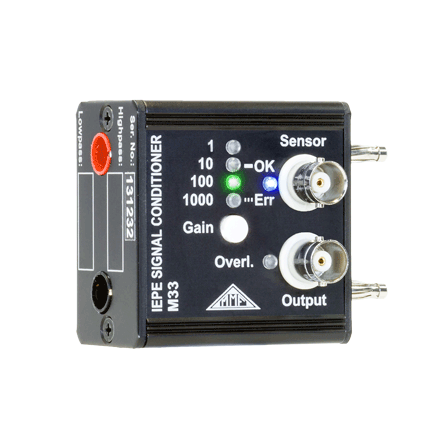

MMF M33 IEPE Conditioning Module (0.2~30 kHz)

Input: BNC; IEPE constant current source 3.5 .. 4.5 mA, bias voltage >24 V

Output: BNC; DC coupled, impedance 300Ω

Gain: 1 / 10 / 100 / 1000; ±0,5 %

Noise at output:

(0.3 Hz to 40 kHz)

     Gain 1: -100 dBV

     Gain 10: -80 dBV

     Gain 100: - 70 dBV

     Gain 1000: -50 dBV

Frequency range (-3 dB): 0.2 Hz to 30 kHz (with FB2-30 kHz)

High pass filter modules: FB3-3/5/10/30/50/100/300/500/1000 Hz; Butterworth 2 poles

Low pass filter modules: FB2-0.1/0.3/0.5/1/3/5/10/30 kHz; Butterworth 4 poles

Integrator modules: Single integrator FBV: 3 to 10000 Hz; double integrator FBD: 5 to 1000 Hz

Output swing voltage: ± 10 V

Overload indication: LED; at >10V peak at output and filter input

Power supply: 5 to 28 VDC; 170 to 25 mA; isolated from signal path; via coaxial power

jack DIN 45323 (positive at inner contact) or 4 mm banana plug

Case: Aluminum

Supplied accessories: 2 screw-in banana plugs for power supply connection to next module

Optional accessories: PS1600: mains plug adapter for 100 to 240 VAC; 12 VDC/1600 mA

for up to 5 units M33

M29+33DIN: 35 mm DIN rail adapter

Operating temperature: -40 to 55 °C; 95 % rel. humidity; co condensation

Weight: 130 g

Dimensions (W x H x D): 54 mm x 55 mm x 45 mm
