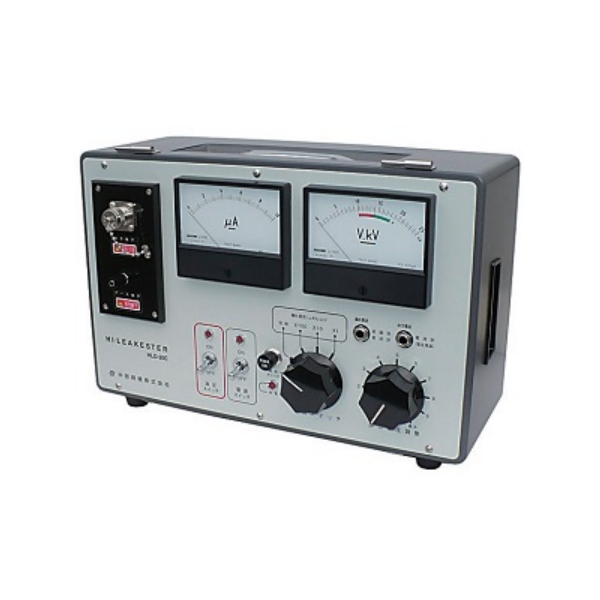

MULTI HLD-20C 直流高压绝缘测试仪 (DC 25kV)

Output Voltage: DC 25kV (negative polarity)

Load: Electrostatic capacity, less than 1μF

Short-circuit Current: Approx. 2.5mA (at the time of output 25kV, no loading)

Leakage Current Setting: Less than 0.01μA (Output: 25kV, Tempeature: 25℃, Humidity: less than 70%)

Voltmeter: 25kV (1.5 class)

Ammeter: 10, 100, 1000μA by range selection (1.5 class)

Recorder Output: 1μA/10mV

Power Supply: Rechargeable Ni-Cd battery 14.4V (continuous use: 4 hours)

Battery Charging Time: Approx. 15 hours by AC 100V (in case that the battery voltage is indicated within red mark at panel meter)

Dimension: W360×H230×D175mm

Weight: 11kg

Accessory: Cable lead wires 2m & 15m, Lead wire for DC power supply 2m, Cords for precise voltmeter, ammeter and recorder
