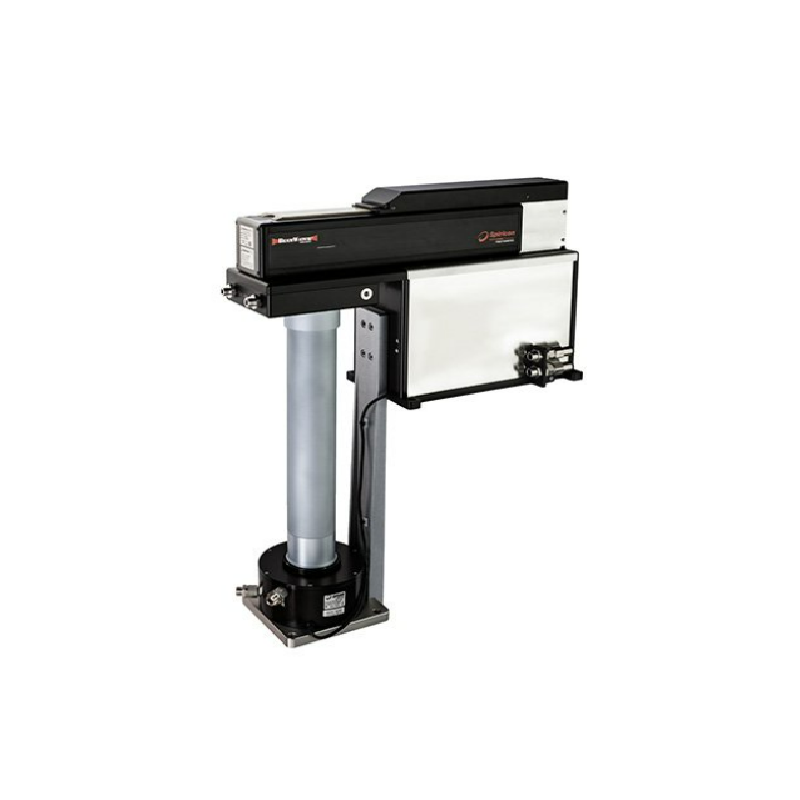

Ophir BW-Integrated-500-NIR-155-Ethernet/IP High-Power Beam Profiling (980 - 1080 nm, 500 W - 9999 W)

Wavelengths: 980-1080nm

Camera field of view inside the unit: 32.17 mm x 8.55 mm

Interface: EtherNet/IP & GigE

Power range: 500 W – 9999 W (up to 30 kW on request)

Power supply: 24 Volts DC, 5 Amps max

Max Beam Diameter at Entrance/Exit: 12.5mm

Distance between focus and power meter: 500 mm

Power sensor response time: 2.7 s max for 9999 W

Weight: ~20kg

Dimension: 553 mm x 682 mm x 172 mm

Compliance: CE, UKCA, China RoHS
