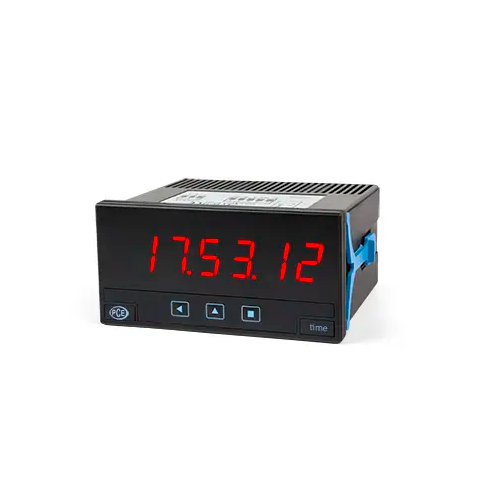

PCE PCE-DPD-Cx 面板指示器

Sexagesimal indication: mm.ss.cc / hh.mm.ss / dd.hh.mm mmmm.ss / hhhh.mm / dddd.hh

Decimal indication: ssssss /sssss.s / ssss.ss / mmmmmm / mmmmm.m / mmmm.mm / hhhhhh / hhhhh.h / hhhh.hh

Screen: 6-digit 7-segment LED

Colour: Red or green (check availability)

Digits height: 14 mm

Function: Ascending or descending stopwatch

Controls: Start, stop, reset

Default Controls*: Potential free contact

*Configurable for push-pull, NPN, PNP, inductive, ...

Excitation voltage: +5V DC, +9V DC, +15V DC, +18V DC (max. 70-mA)

Vdc maximum at the input: ± 30V DC

Precision: 100 ppm

Display refresh: 12 times / second

Reset: front, rear and alarm activation

Counting memory: maintained in case of loss of power

Power '1': 85 to 265V AC / DC (isolated 2500 Veff)

Power '2': 11 to 60V DC and 24/48V AC (isolated 1500 Veff)

Output and control options: relays, analog outputs, serial communications, ...

Consumption: < 1.5W (indicator only); < 4.0W (indicator with options)

Electric connections: Screw plug-in terminal

Protection: Front: IP65

Mounting: Panel

Panel cut: 92 x 44 mm / 3.6 x 1.7 in

Dimensions: 96 x 48 x 91 mm / 3.8 x 1.9 x 3.6 in

Weight: Approx. 150 g / < 1 lb

Operating temperature: 0 ... 50°C / 32 ... 122°F

Storage temperature: -20 ... 70°C / -4 ... 158°F

- Delivery scope:

1 x Panel indicator PCE-DPC-C

1 x Power terminal

1 x Signal terminal

1 x Unit board

1 x Instruction manual
