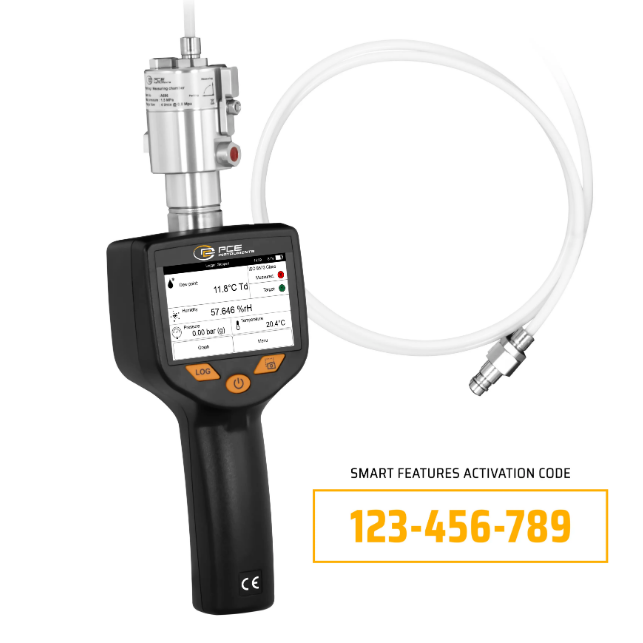

PCE PCE-DPM 10-SFKIT HVAC 测试机 (0 bar~15 bar; -100 °C~+50 °C, icl. smart features)
制造商: PCE Model: PCE-DPM 10-SFKIT - 报价要求
- 报价要求
Price (exclude VAT) 121,001,473 VND Price (include VAT) 133,101,620 VND
- Differential pressure:
Measuring range: 0 bar ... +15 bar
Resolution: 0.01 bar
Accuracy: 0.5 % v. Mb.
- Điểm sương:
Messbereich: -100 °C ... +50 °C
Auflösung: 0,1 °C
- Điểm sương:
Measuring range: 0 °C ... +20 °C
Resolution: 0.1 °C
Accuracy: ± 1°C
- Điểm sương:
Measuring range: -60 °C ... +50 °C
Resolution: 0.1 °C
Accuracy: ± 2°C
- Điểm sương:
Measuring range: -100 °C ... -60 °C
Resolution: 0.1 °C
Accuracy: ± 3°C
- Temperature:
Measuring range: -30 °C ... +50 °C
Resolution: 0.1 °C
Accuracy: ± 0.3 °C
- General technical data :
Measurement functions: Average value
Units: °C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.
Connections: G1/2" with 6mm quick coupling
Display type: LC Touch Display
Display size: 3.5 inches
Display refresh rate: 1 x per second
Other functions: PDF Export
Interface: USB- C
Standard(s): ISO8573- 1
Current consumption measuring device: 400 mA DC
Response time: 1 s
Measuring medium: Air, Nitrogen, Argon, Carbon Dioxide, Oxygen
Camera resolution: 5 Megapixel
Operating time: 8 h
Operating time Additional information: Charging takes approx. 3h.
Automatic shutdown adjustable: 10 ... 60 min.
Menu language: English, German, French, Spanish, Chinese, Korean, Japanese
Protection class (device): IP30
Power supply: 5V DC 3 A (via USB C)
Weight: 775 g
Device weight with delivery: 2.83 kg
device weight with scope of delivery and outer packaging. outer packaging: 2.93 kg
Dimensions (L x W x H): 310 x 100 x 60 mm
Other dimensions: PTFE hose 1.5 m with 6mm quick coupling
Operating conditions: 0 . .. 80 % RH
Storage conditions: 0 ... 40 °C , 0 ... 80 % RH
Instruction languages: German, English
Battery 3500 mAh, 3,7 V
- Delivery scope:
1x HVAC Meter PCE-DPM 10-SFKIT
1x activation of the Smart features for PCE-DPM 10-SFKIT
1x PTFE hose with quick coupling
1x USB power supply with adapters
1x USB-C cable
1x USB-C stick
1x transport case
1x software (download)
1x operating instructions
