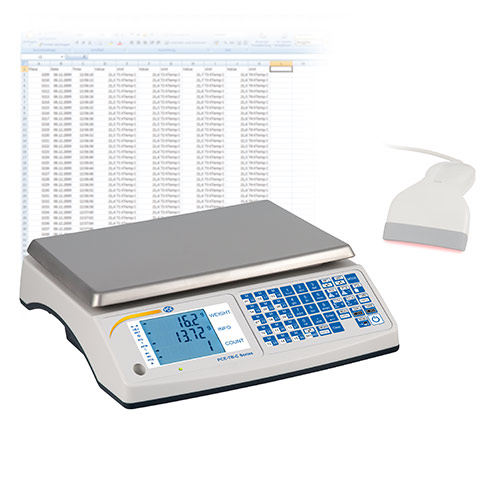

PCE TB 15C 计数秤 (15 kg; 0.5 g)

Model: PCE-TB 15C

Weighing range: 15 kg

Resolution: 0.5 g

Measurement uncertainty: ± 1.5 g

Reference piece weight: by weighing or entering

Taring range: Multiple tare over the full weighing range

Display: multi-display 16 mm digit height

Memory:

- for up to 5 users

- for 30 products via the quick selection buttons

- for a total of 1,000 product data records

- for 10 tare weights

Product record:

- location number

- article name

- barcode

- unit weight / target weight

- deviation tolerances / min. - max.

- tare weight

Data maintenance: manually on the balance or with the help of PC software and Excel

Interfaces: RS-232 and USB

Scanner possible via RS-232 / Sub-D 9

Optional: 4-20 mA / 0-10 V / switching contacts

Settling time: <3 s

Platform size: 300 x 210 mm (stainless steel)

Calibration: external possible / freely selectable with M1 weights

Power supply: 230V / 50 Hz - 12V / 1.2A power supply or 6V / 4.5Ah battery optional

Battery life: ca. 90 hours / charging time approx. 12 hours

Operating temperature: -10…+35°C / 15% rH – 85% rH

Dimensions: 335 x 320 x 110 mm

Weight: ca. 3.5 kg

Delivery Scope:

1 x PCE-TB 15C Counting Scales

1 x Power supply

1 x Software Scale Database (freeware in the download area)

1 x Instruction manual

Datasheet
