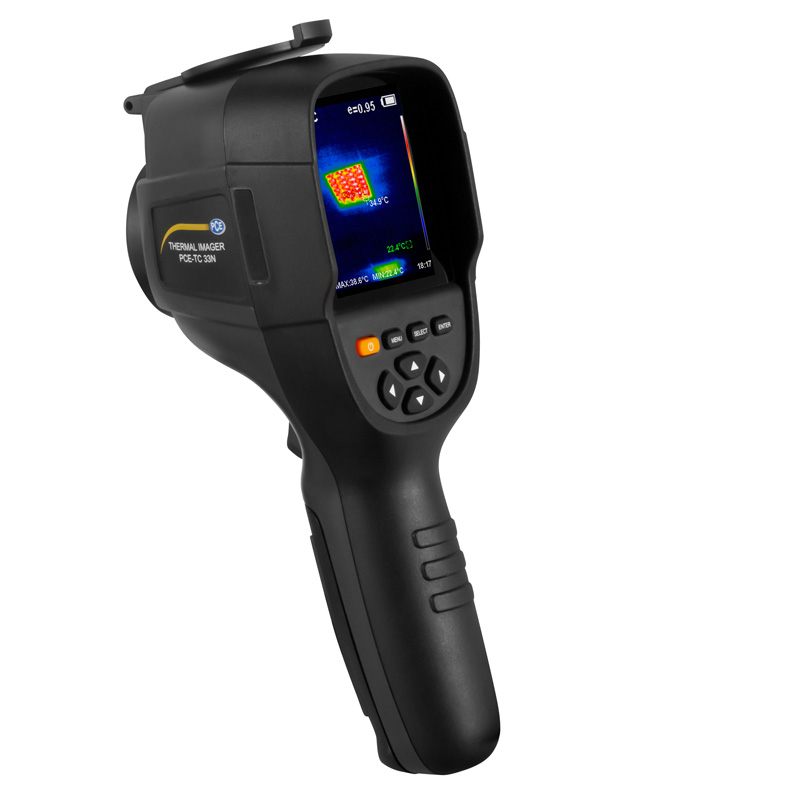

PCE TC 35 红外测温仪 (-20~300°C; 8~14 μm)

- Infrared sensor:

Resolution: 220 x 160 pixels

Wavelength: 8 ... 14 μm

Thermal sensitivity: 70 mk

Refresh rate: 9 Hz

Field of view (FOV): 35° x 26°

Focusing: Firm focus

Smallest distance: 0.15 m / 5.9 in

Temperature range: -20 ... 300°C / -4 ... 572°F

Accuracy: ± 2°C / 3.6°F, ± 2%

Calibration of the measurement: Auto

Number of spots: 1

Number of measuring ranges: 1

Emissivity: Range: 0.01 ... 1.00

Color palettes: Rainbow, iron oxide red, cold color, black & white, white & black

- Other specifications:

Picture in picture function: Adjustable 25%, 50%, 75%, 100%

Camera resolution: 300,000 pixels

Screen: 3.2" TFT

Screen resolution: 320 x 240 pixels

Image memory: Built-in SD card with 3 Gb for more than 20,000 images

Image format: JPG

Power supply battery: Built-in 18650 battery, about 2800-mAh

Power supply power supply:

Primary: 100 ... 240V AC 50/60 Hz

Secondary: 5V / 2 ADC

Interface: Micro USB for charging and memory readout on a PC

Operating time: Between 2 ... 3 hours

Menu languages: English, Chinese, Italian, German

Automatic shutdown: After 5, 20 minutes or disabled

Ambient temperature: 0 ... 45°C / 32 ... 113°F

Storage conditions: -20 ... 60°C / -4 ... 140°F

Humidity: ≤ 85% RH (non-condensing)

Dimensions: 90 x 103 x 223 mm / 3.5 x 4.1 x 8.8 in

Weight: 424 g / < 1 lb

Delivery Scope:

1 x Infrared thermometer PCE-TC 33N

1 x Micro USB cable

1 x USB charging adapter

1 x Carrying bag

1 x User manual
