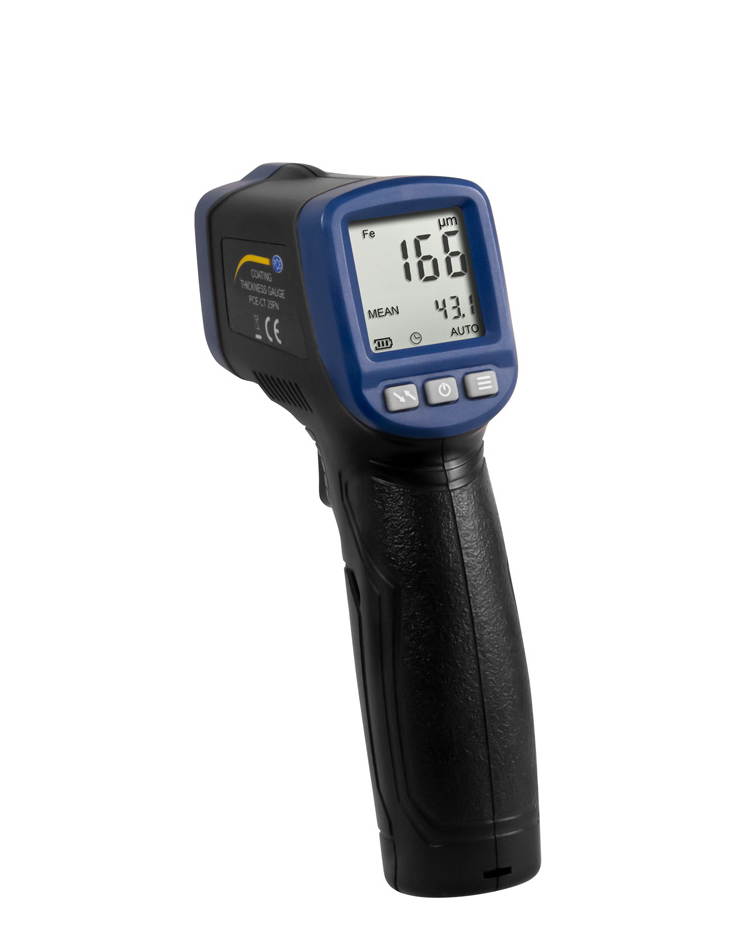

PCE PCE-CT 25FN Coating Thickness Gauge (0~1500µm,0.1µm/1µm)

Measuring range: 0 ... 1500 µm

Measurement accuracy: ± (3% + 1 µm)

Resolution: 0.1 µm in the measuring range 0 ... 100 µm

         1 µm in the measuring range> 100 µm

Units: µm, mm, mils

Smallest curvature: convex 5 mm, concave 25 mm

Smallest measuring area: Ø 20 mm

Minimum thickness of the substrate:

Fe: 0.3 mm

NFe: 0.05 mm

Measuring rate: Max. 2 Hz

Power supply: 9 V block battery

Operating conditions: -10 ... 50 ° C, 20 ... 90% RH non-condensing

Storage conditions: -10 ... 60 ° C, 20 ... 90% RH non-condensing

Dimensions: 143 x 85 x 39 mm

Weight: approx. 100 g

Delivery Scope

1 x PCE-CT 25FN Coating Thickness Gauge

5 x calibration foil reference

1 x Fe zero standard

1 x NFe zero standard

1 x 9 V block battery

1 x instruction manual

Accessories

Order no.: CAL-CT

ISO Calibration Certificate for Coating Thickness Gauge
