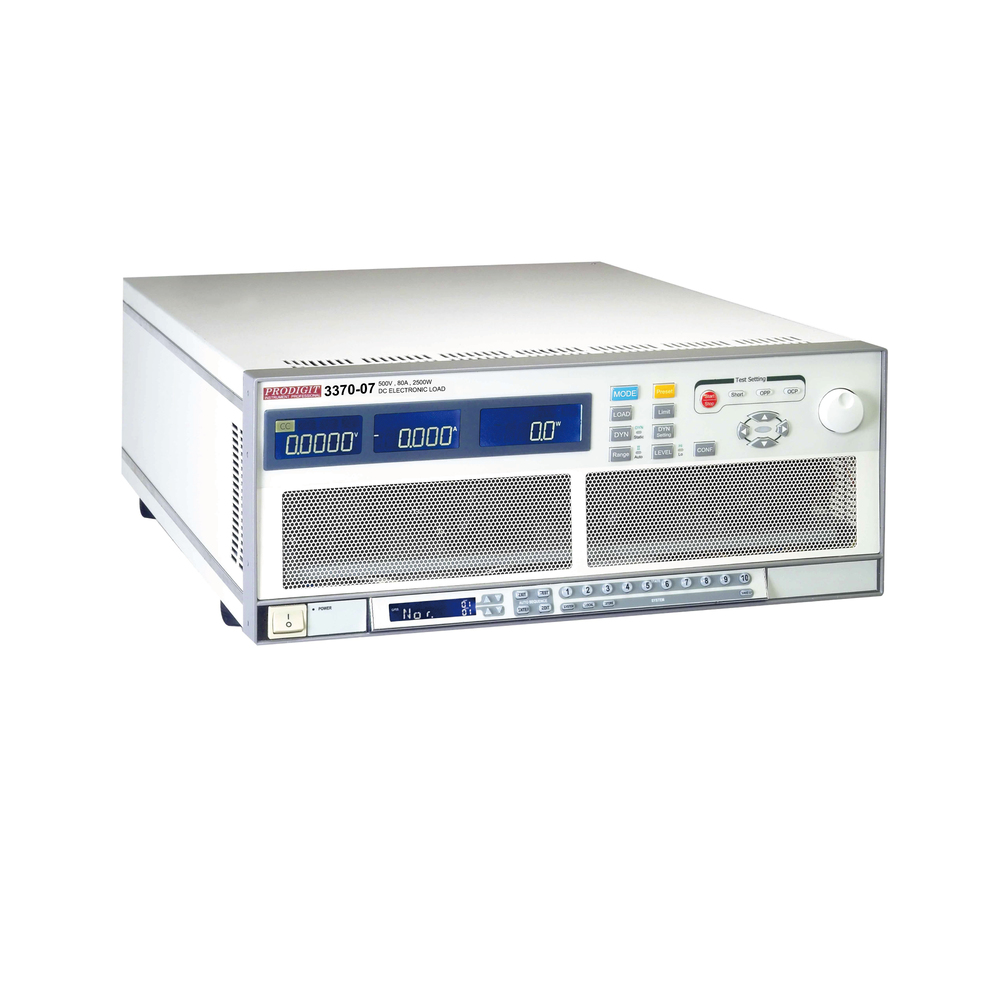

PRODIGIT 3370-07 Compact High Power DC Electronic Load (500V, 80A, 2500W)

Power: 2.5KW

Current: 0~8A/0~80A

Voltage: 0~500V

Min.Operation Voltage: 10V at 80A

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 105%

  Over Voltage Protection (OVP): 105%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~8A/0~80A

  Resolution: 0.134mA/1.34mA

  Accuracy:    ±0.1%

CR mode:

  Range: 30000-7.5Ω/7.5-0.125Ω

  Resolution: 2.2uS/125uΩ

  Accuracy:    ±0.2%

CV mode:

  Range: 500V

  Resolution: 10mV

  Accuracy:    ±0.05%

CP mode:

  Range: 250W/2500W

  Resolution: 4.167mW/41.67mW

  Accuracy:    ±0.5%

Measurement mode (Load):

  Voltage: 0 ~ 60V/60~500V, ±0.025%

  Current : 0 ~ 8A/8~80A, ±0.1%

  Power : 0 ~ 250W/2500W, ±0.125%

Short circuit current: 80A

Dimension (HxWxD): 177 x 483 x 662 mm,

Weight: 45 kg

Detail

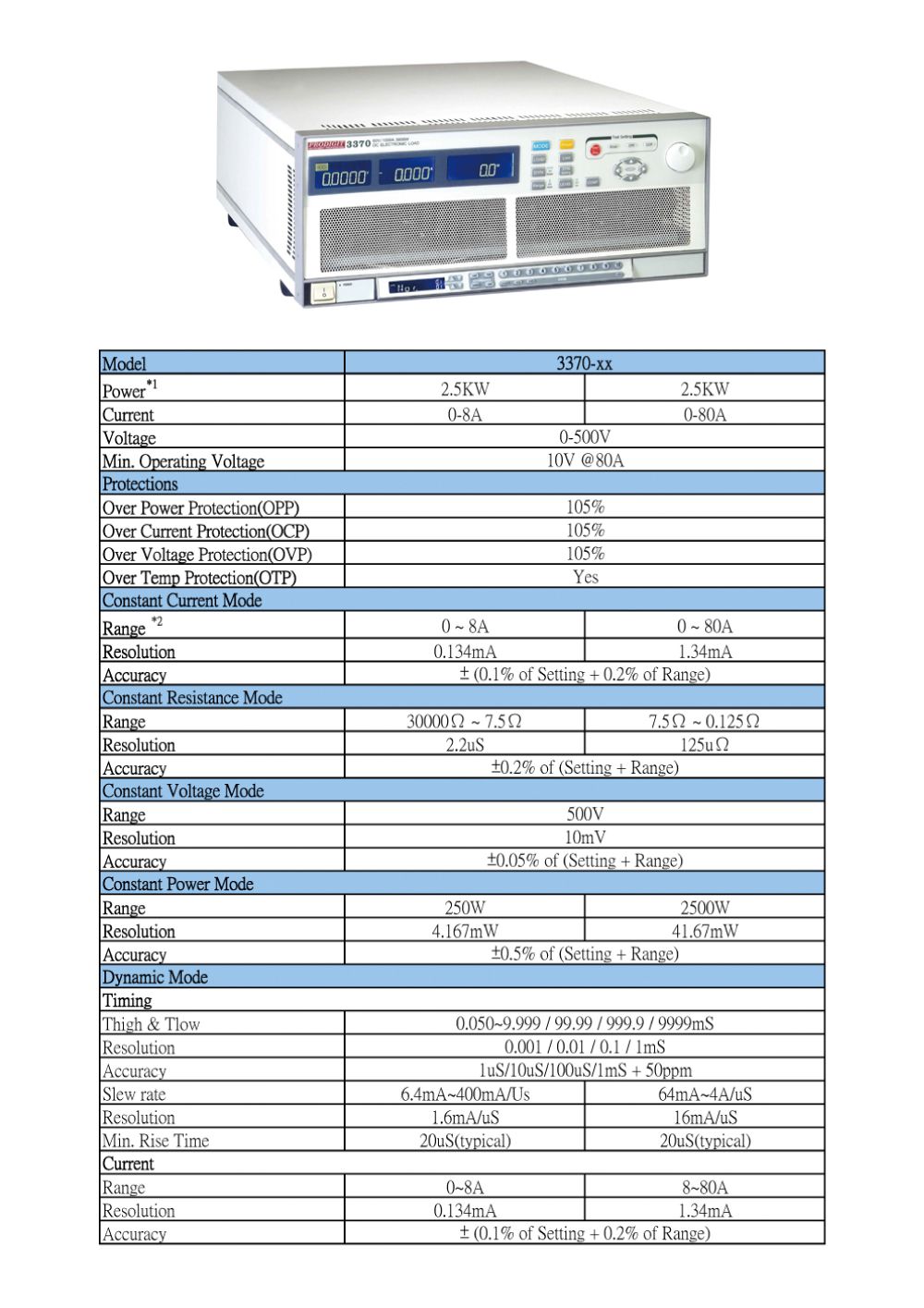

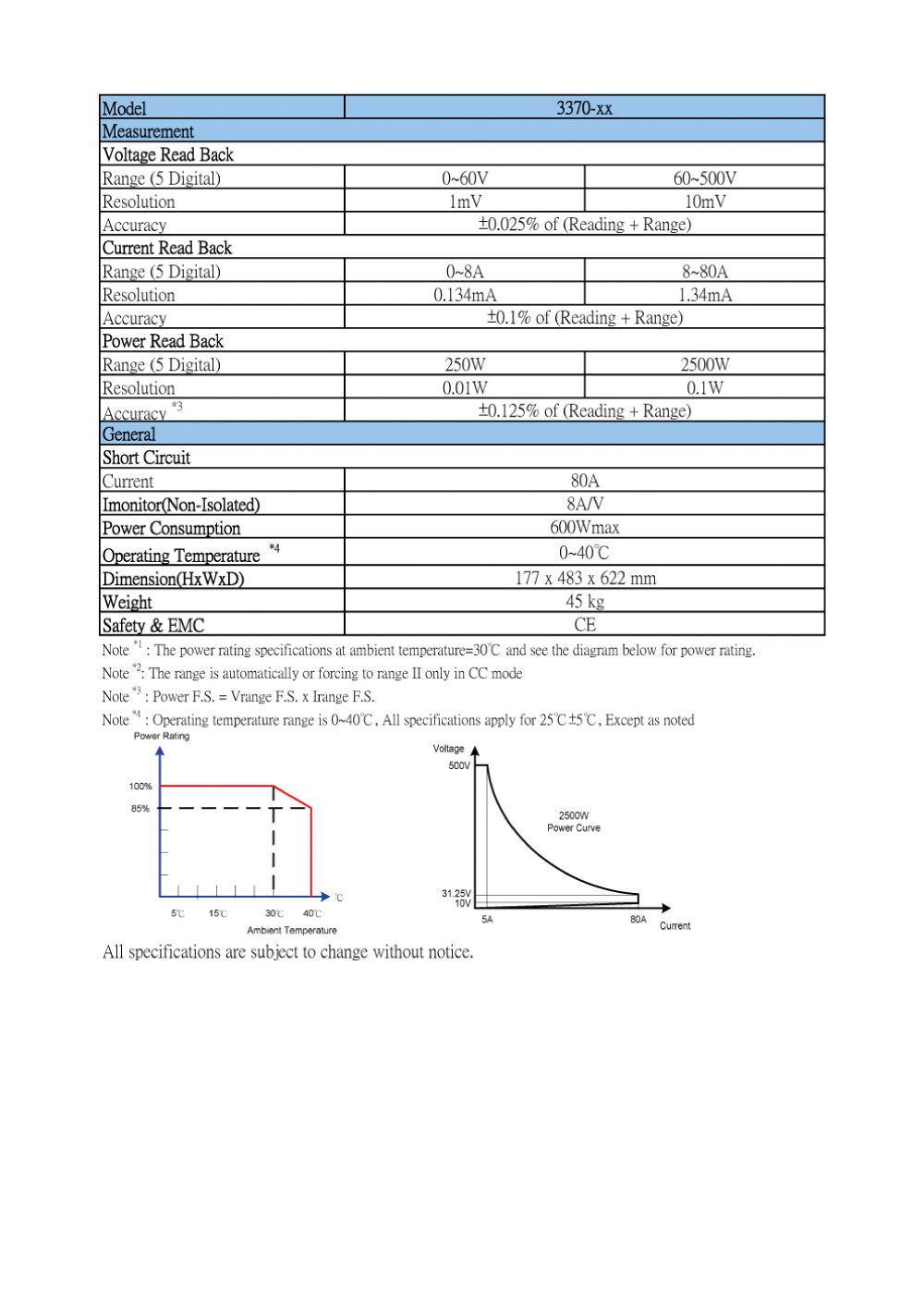

Datasheet
