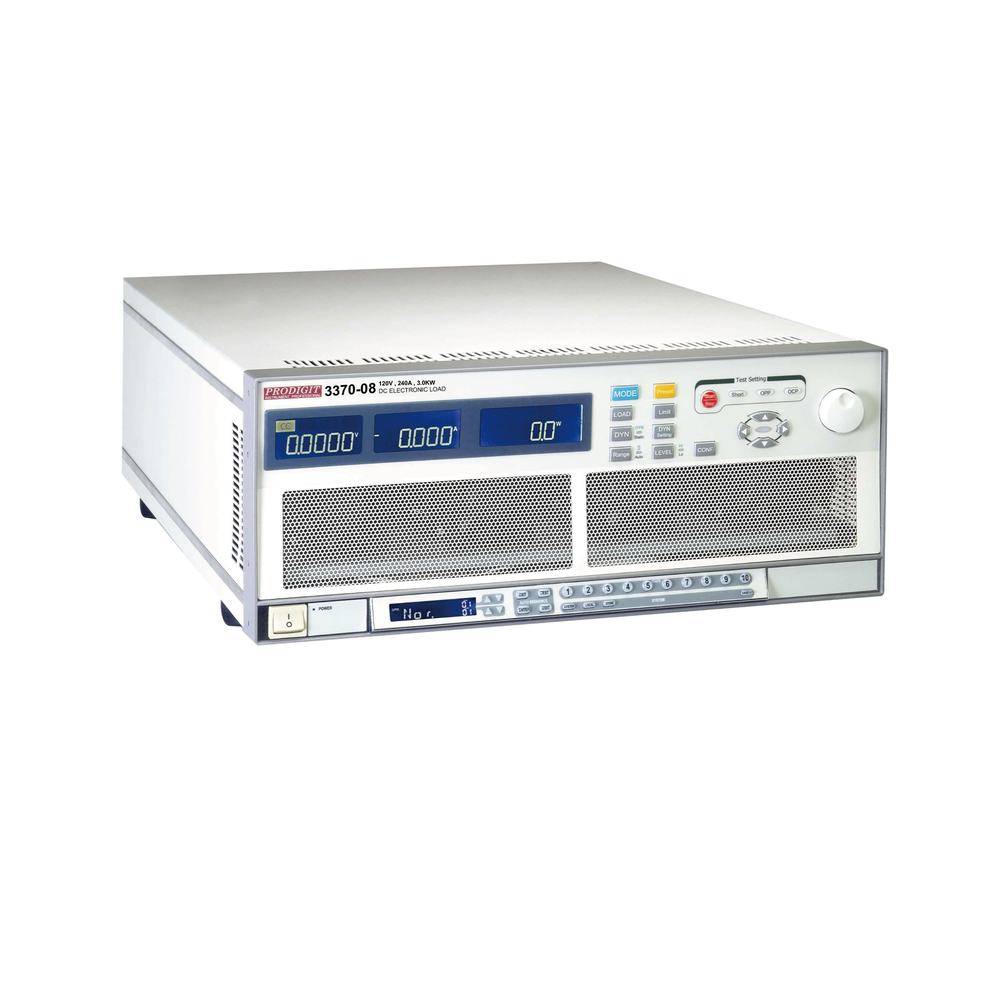

PRODIGIT 3370-08 小型大功率DC电子负载 (120V, 240A, 3KW)

Power: 3KW

Current: 0~24A/0~240A

Voltage: 0~120V

Min.Operation Voltage: 2V at 240A

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 105%

  Over Voltage Protection (OVP): 105%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~24A/0~240A

  Resolution: 0. 4mA/4mA

  Accuracy:    ±0.1%

CR mode:

  Range: 0.0083-0.5Ω/0.5-30000Ω

  Resolution: 0.0083Ω/0.0333mS

  Accuracy:    ±0.2%

CV mode:

  Range: 0~12V/12~120V

  Resolution: 0.2mV/2mV

  Accuracy:    ±0.05%

CP mode:

  Range: 300W/3000W

  Resolution: 5mW/50mW

  Accuracy:    ±0.05%

Measurement mode (Load):

  Voltage: 0 ~ 12V/12~120V, ±0.025%

  Current : 0 ~ 24A/24~240A, ±0.1%

  Power : 0 ~ 300W/3000W, ±0.125%

Short circuit current: 240A

Dimension (HxWxD): 177 x 440 x 750 mm

Weight: 45 kg
