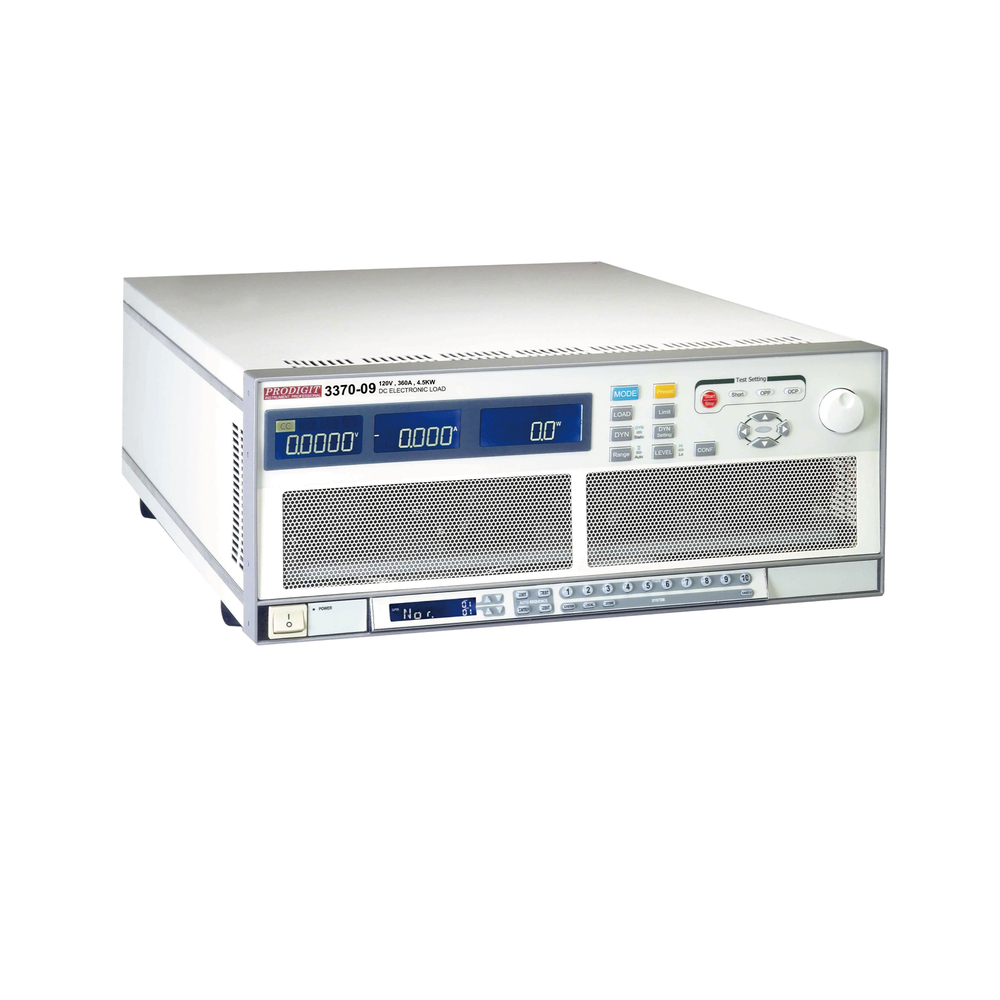

PRODIGIT 3370-09 Compact High Power DC Electronic Load (120V, 360A, 4.5KW)

Power: 4.5KW

Current: 0~36A/0~360A

Voltage: 0~120V

Min.Operation Voltage: 0.2V at 360A

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 105%

  Over Voltage Protection (OVP): 105%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~36A/0~360A

  Resolution: 0.6mA/6mA

  Accuracy:    ±0.1%

CR mode:

  Range: 0.0055-0.3333Ω/0.3333-20000Ω

  Resolution: 0.0083Ω/0.0333mS

  Accuracy:    ±0.2%

CV mode:

  Range: 0~12V/12~120V

  Resolution: 0.2mV/2mV

  Accuracy:    ±0.05%

CP mode:

  Range: 450W/4500W

  Resolution: 7.5mW/75mW

  Accuracy:    ±0.05%

Measurement mode (Load):

  Voltage: 0 ~ 12V/12~120V, ±0.025%

  Current : 0 ~ 36A/36~360A, ±0.1%

  Power : 0 ~ 450W/4500W, ±0.125%

Short circuit current: 360A

Dimension (HxWxD): 177 x 440 x 750 mm

Weight: 45 kg


Detail

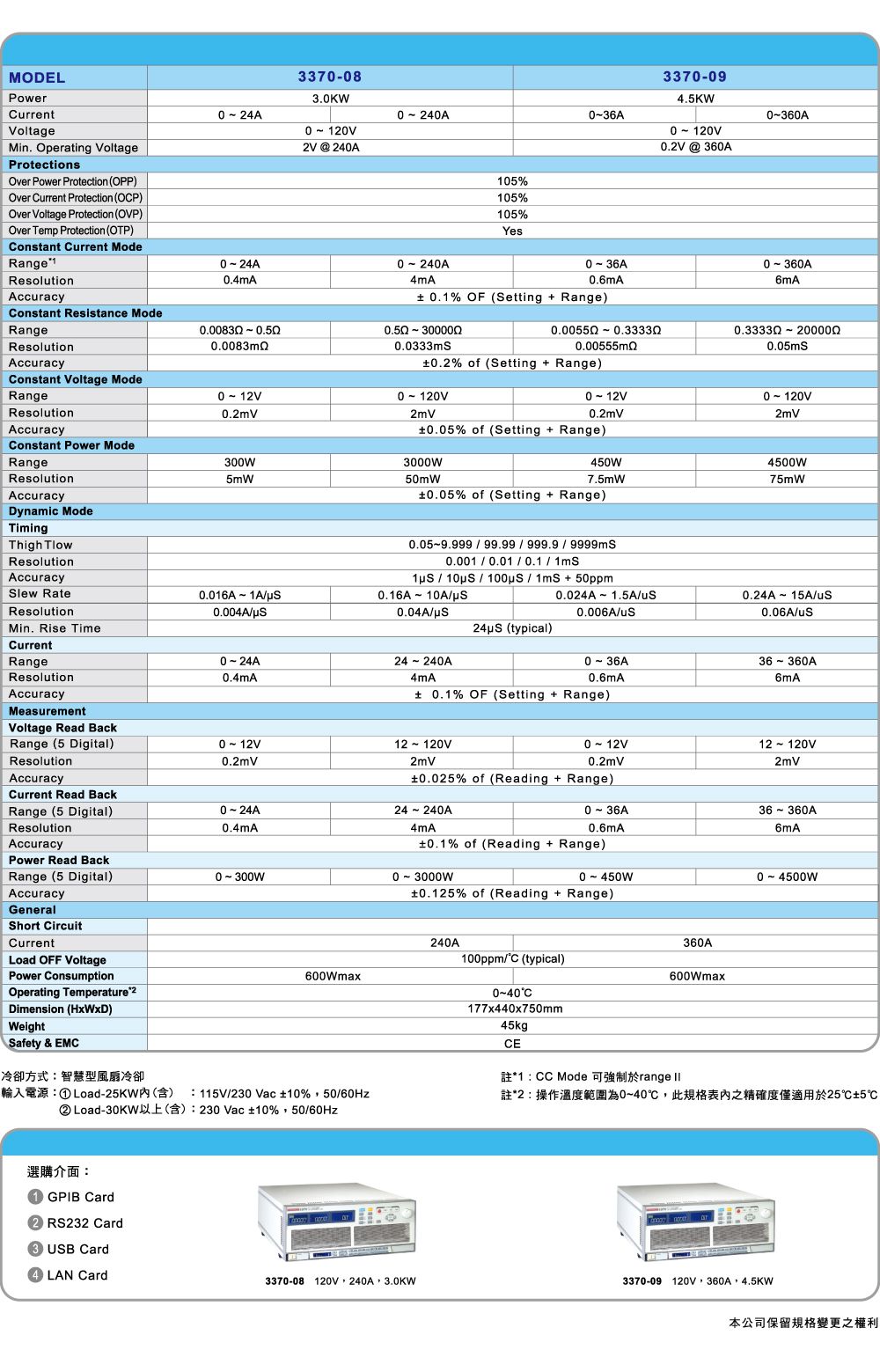

Datasheet
