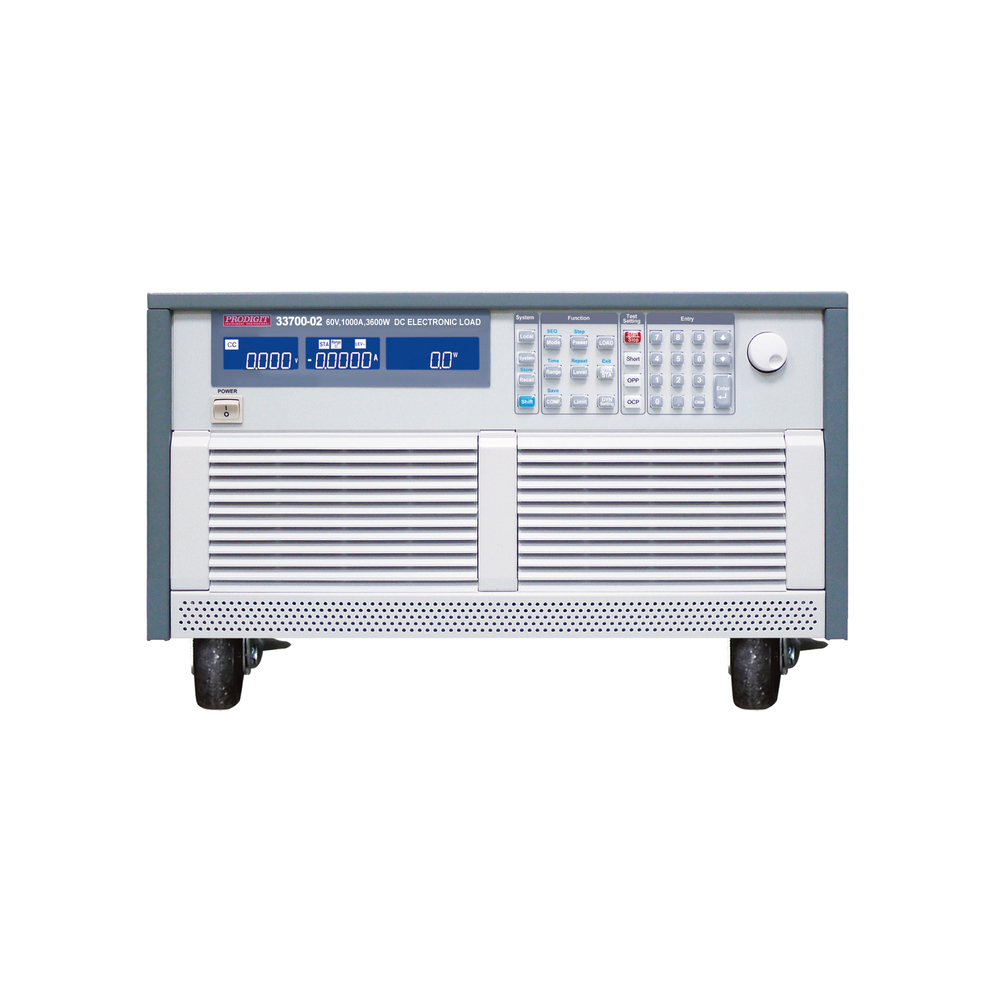

PRODIGIT 33700-02 小型大功率DC电子负载 (60V, 1000A, 3600W)
制造商: PRODIGIT Model: 33700-02 来源: Taiwan 保障: 12 Month - 报价要求
- 联系
Power: 3600W
Current: 0~100A/0~1000A
Voltage: 0~60V
Min.Operation Voltage: 0.1V at 100A/0.7V at 1000A
Protections:
Over Power Protection (OPP): 1.05%
Over Current Protection (OCP): 1.05%
Over Voltage Protection (OVP): 1.05%
Over Temp Protection (OTP): Yes
CC mode:
Range: 0~100A/0~1000A
Resolution: 1.667mA/16.676mA
Accuracy: 0.1% setting + 0.2% range
CR mode:
Range: 0.001-0.06Ω/0.06-3600Ω
Resolution: 0.001Ω/277uS
Accuracy: ±0.2%
CV mode:
Range: 60V
Resolution: 1mV
Accuracy: ±0.05%
CP mode:
Range: 500W/5000W
Resolution: 7.5mW/75mW
Accuracy: ±0.5%
Measurement mode (Load):
Voltage: 0 ~ 6V/6~60V, ±0.025%
Current : 0 ~ 100A/100~1000A, ±0.1%
Power : 0 ~ 500W/3600W, ±0.65%
Short circuit current: 1000A
Dimension (HxWxD): 365 x 540 x 750 mm
Weight: 85 kg

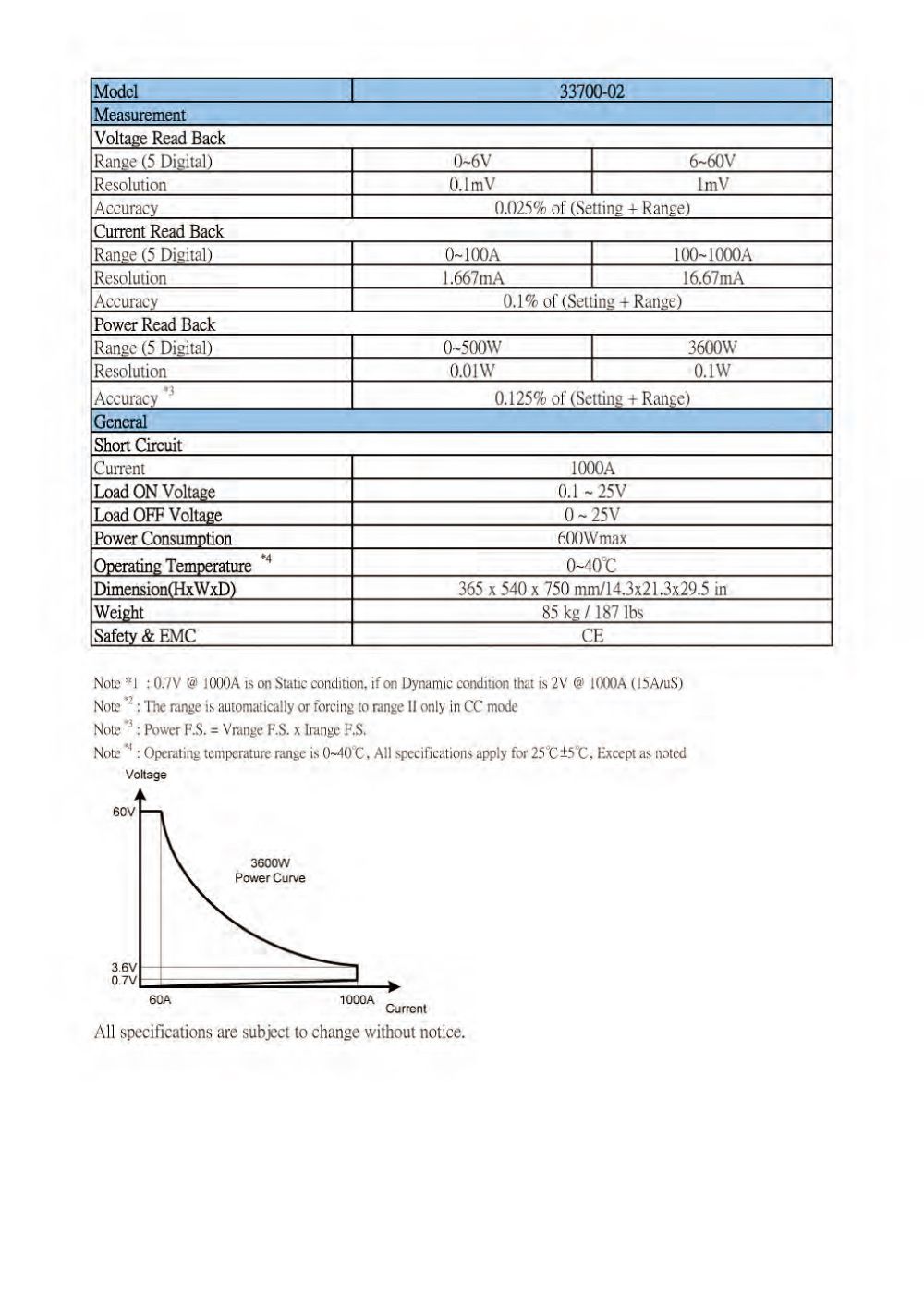

Datasheet
