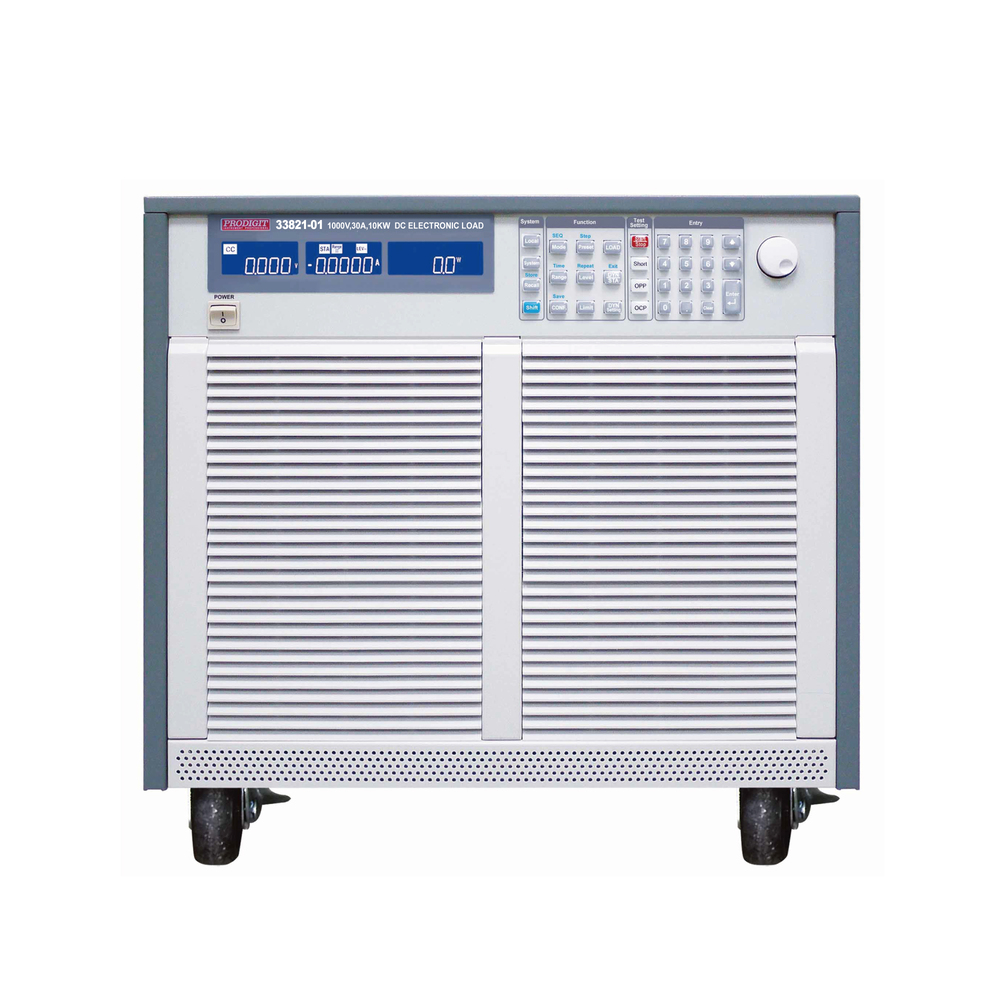

PRODIGIT 33821-01 小型大功率DC电子负载 (1000V, 30A, 10KW)

Power: 10KW

Current: 0~3A/0~30A

Voltage: 50~1000V

Min.Operation Voltage: 50V at 30A

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 105%

  Over Voltage Protection (OVP): 105%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~3A/0~30A

  Resolution: 0.05mA/0.5mA

  Accuracy: 0.1%  setting + 0.2% range

CR mode:

  Range: 1.668-33.33Ω/33.33-2MΩ

  Resolution: 0.556Ω/0.5uS

  Accuracy:   ±0.2%

CV mode:

  Range: 50.1~1000V

  Resolution: 16.67mV

  Accuracy:    ±0.05%

CP mode:

  Range: 1000W/10000W

  Resolution: 16.7mW /167mW

  Accuracy:    ±0.5%

Measurement mode (Load):

  Voltage: 0 ~ 100V/100~1000V, ±0.025%

  Current : 0 ~ 3A/3~30A, ±0.1%

  Power : 0 ~ 1000W/10KW, ±0.65%

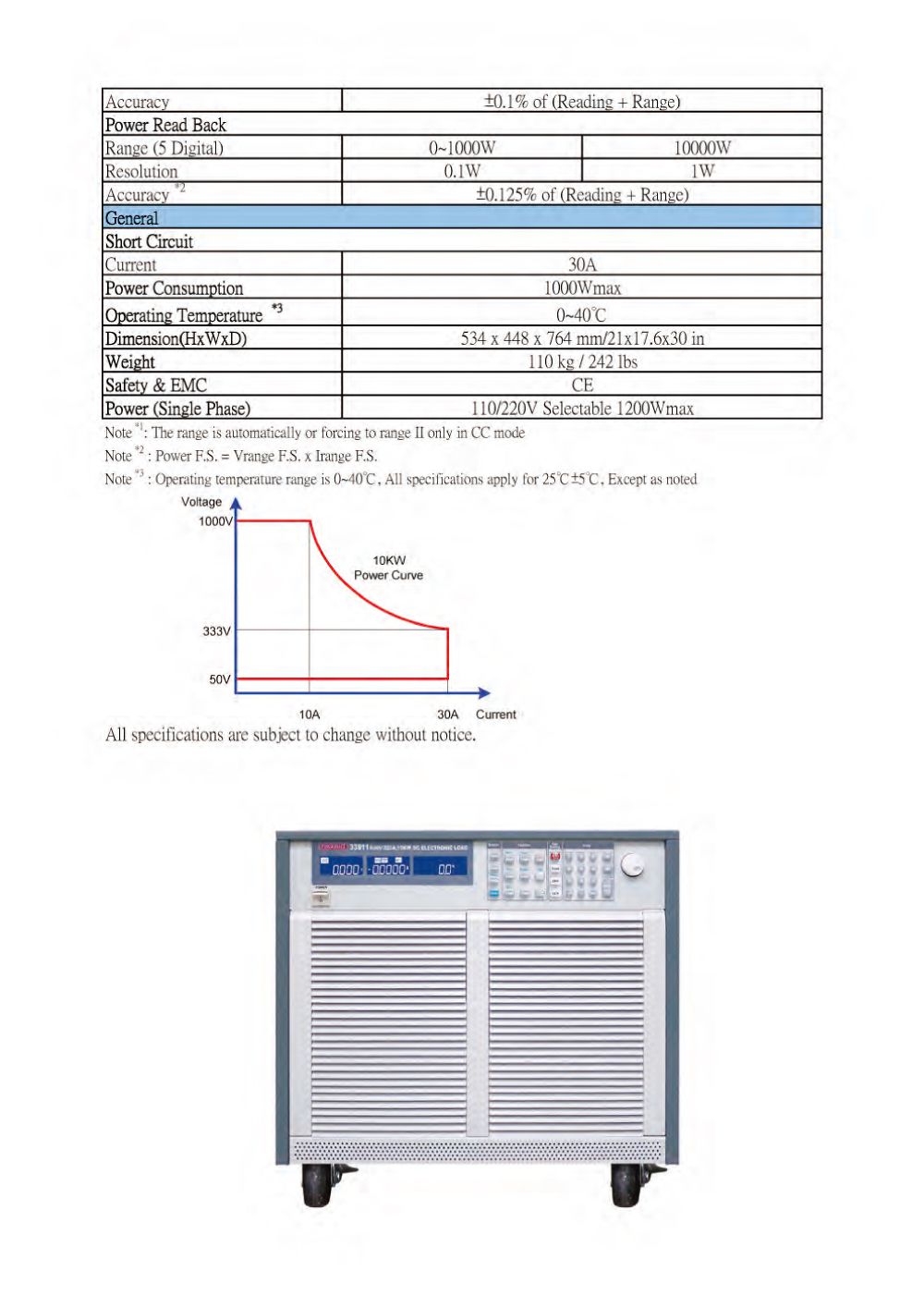

Short circuit current: 30A

Dimension (HxWxD): 534 x 448 x 764 mm

Weight: 110 kg
