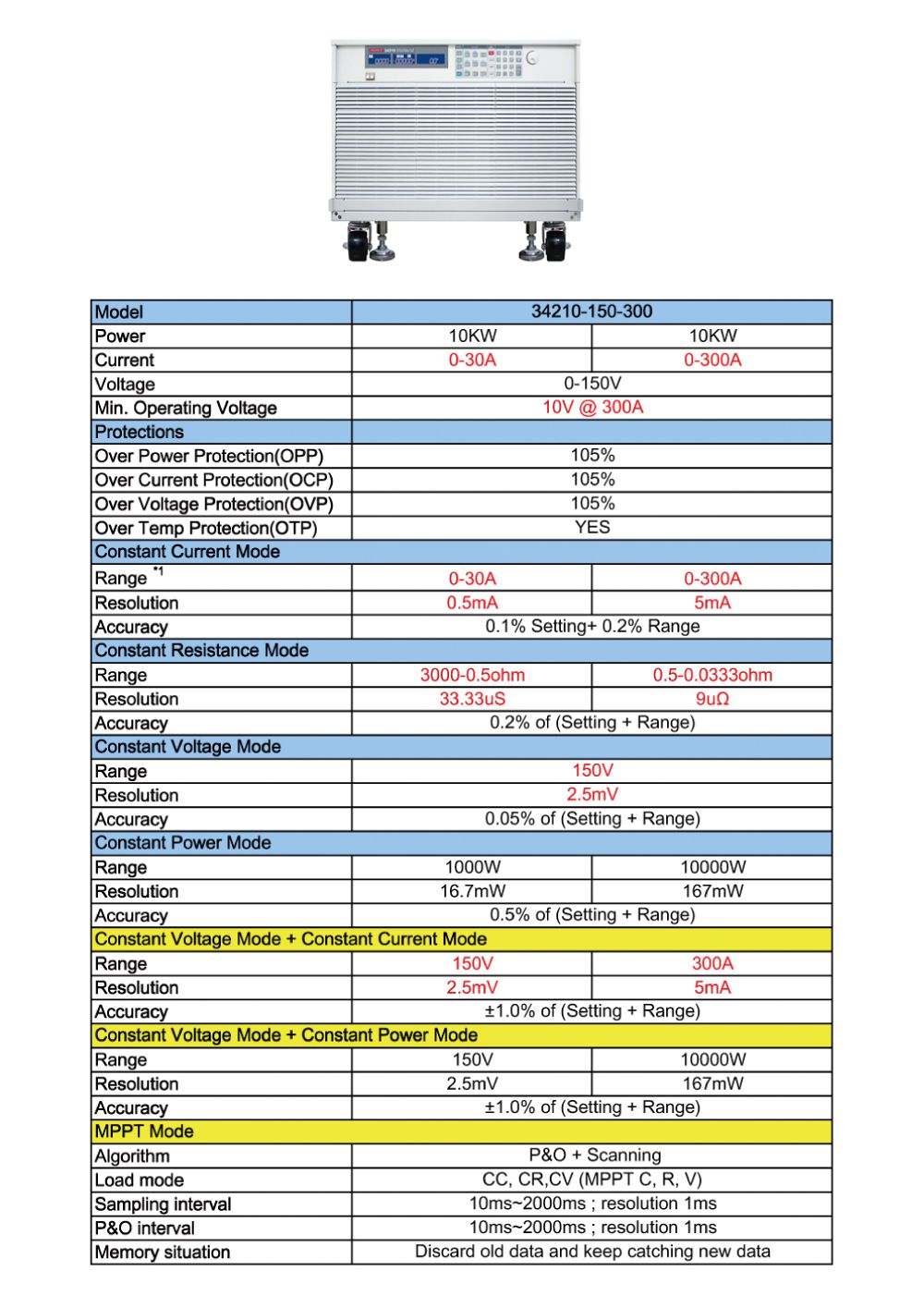

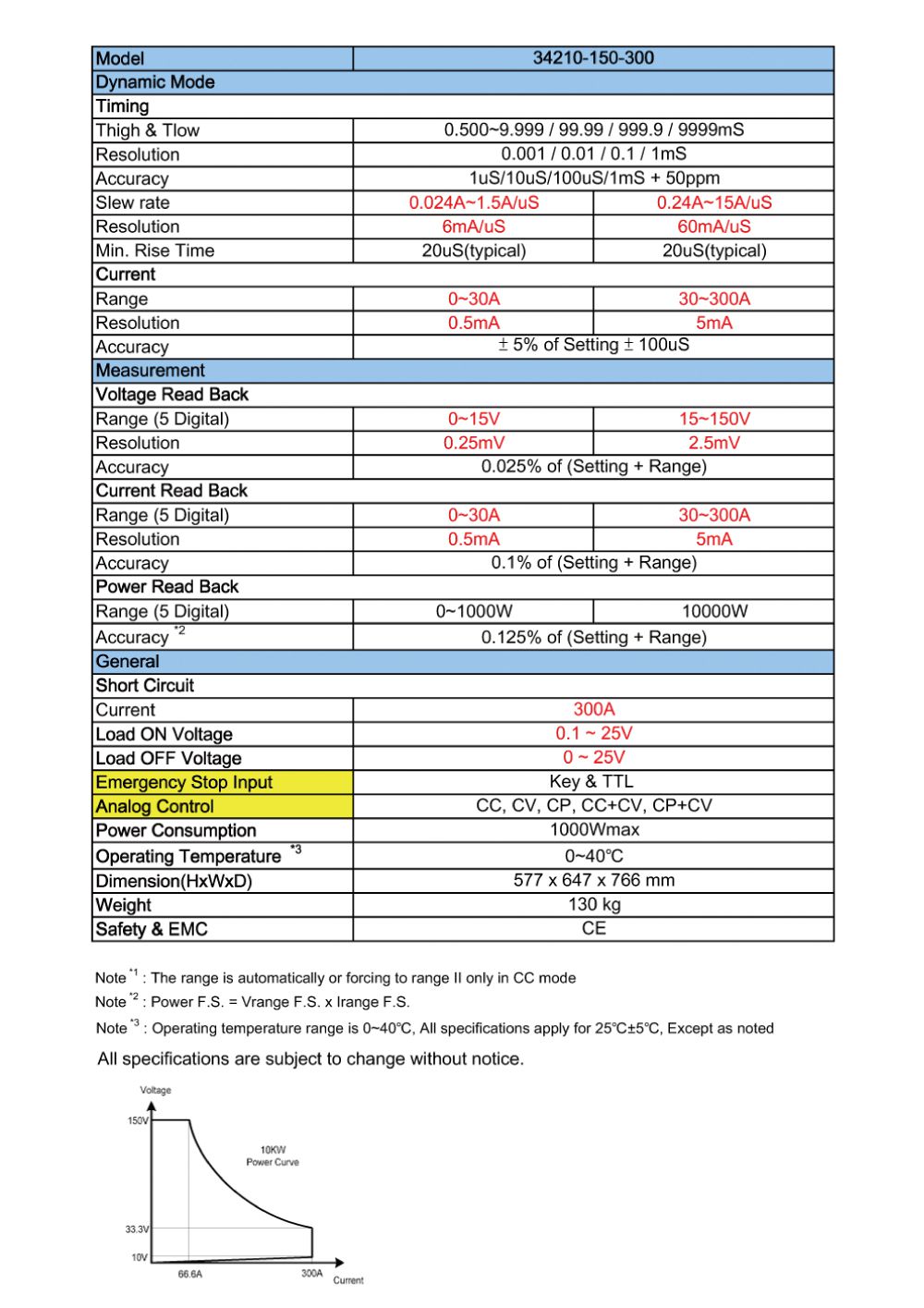

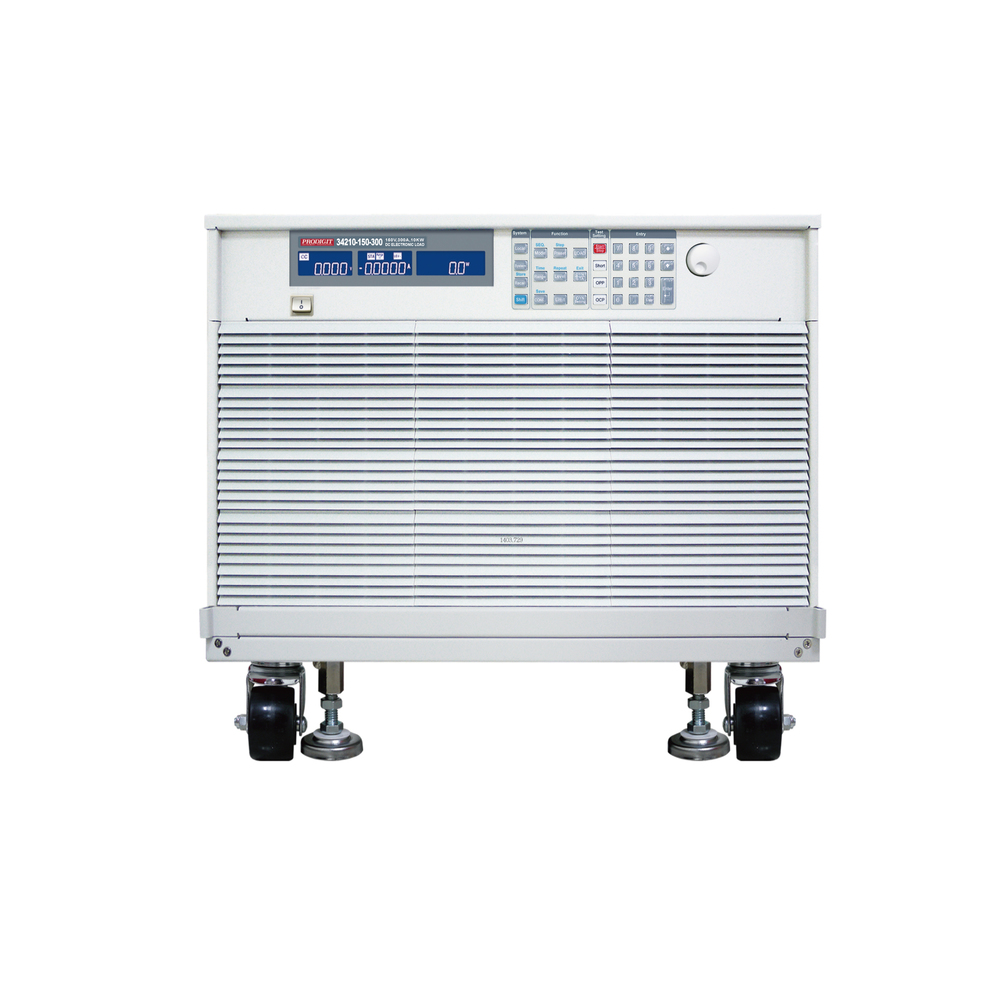

PRODIGIT 34210-150-300 小型大功率DC电子负载 (150V, 300A, 10KW)

Power: 10KW

Current: 0~30A/0~300A

Voltage: 0~150V

Min.Operation Voltage: 50V at 300A

Protections:

  Over Power Protection (OPP): 105%

  Over Current Protection (OCP): 105%

  Over Voltage Protection (OVP): 105%

  Over Temp Protection (OTP): Yes

CC mode:

  Range: 0~30A/0~300A

  Resolution: 0.5mA/5mA

  Accuracy: 0.1%  setting + 0.2% range

CR mode:

  Range: 3000-0.5Ω/0.5-0.0333Ω

  Resolution: 33.33uS/9uΩ

  Accuracy:   ±0.2%

CV mode:

  Range: 150V

  Resolution: 2.5mV

  Accuracy:    ±0.05%

CP mode:

  Range: 1000W/10000W

  Resolution: 16.7mW /167mW

  Accuracy:    ±0.5%

Measurement mode (Load):

  Voltage: 0 ~ 15V/15~150V, ±0.025%

  Current : 0 ~ 30A/30~300A, ±0.1%

  Power : 0 ~ 1000W/10KW, ±0.65%

Short circuit current: 300A

Dimension (HxWxD): 577 x 647 x 766 mm

Weight: 130 kg
