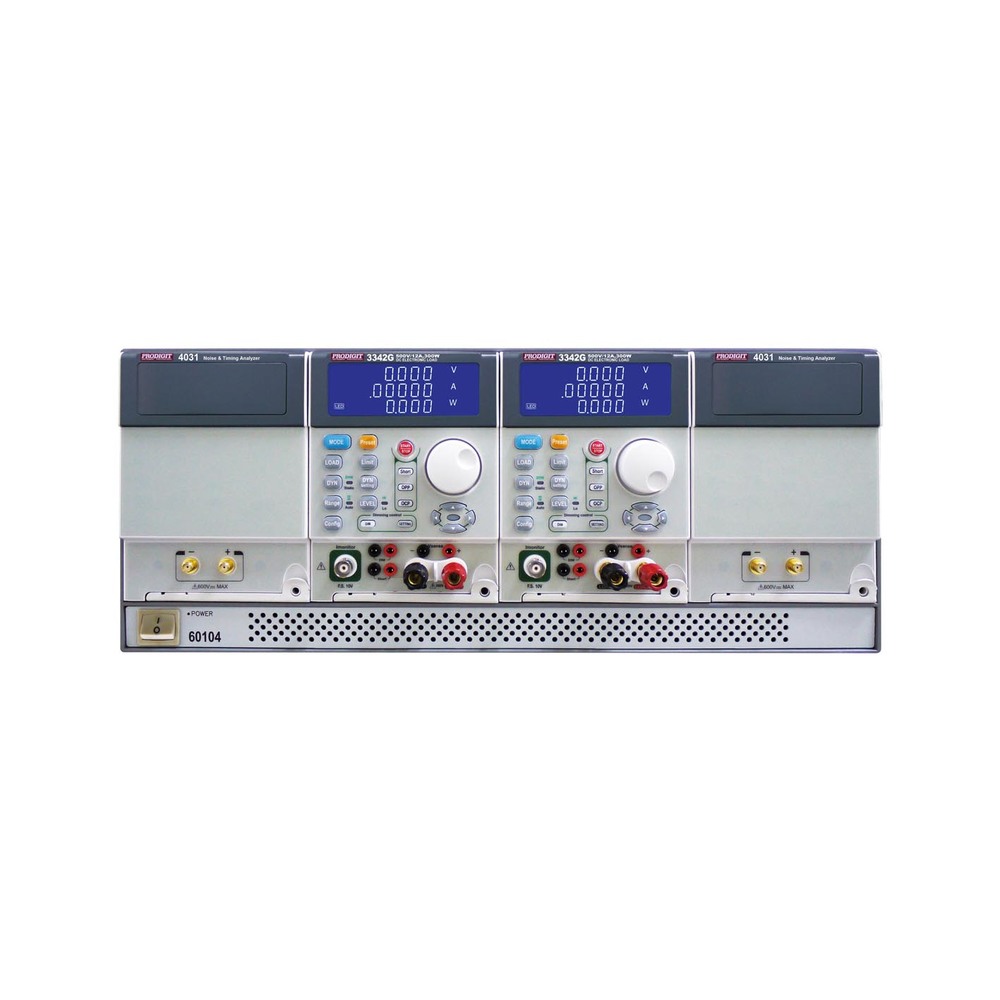

PRODIGIT 4032 Noise and Timing Analyzer Module (20 MHz; 2CH)

No. of input channel: 2

Timing Measurement

Voltage range: 0~80/600 Vdc

Current range: 0-8/3.2Vdc

Timing range: 0~1s

Noise measurement

Low Pass Filter:  up to 20 MHz

Voltage range: 0.6 / 3Vp-p

Over Shoot Measurement

Band Width: 0 - 100 KHz

Voltage range: 0-80/600Vdc

Measurement range: 0-80/600Vdc

Resolution: 0.01 /0.1Vdc

Current range: 0-8/3.2Vdc

Measurement range: 0-8/3.2Vdc

Resolution: 0.001/0.01A

Accuracy: ±5% of (Reading + Range)

Sampling Rate: 100KHzv

Update Rate:  50-1000 ms

Resolution: 1mS

Ripple Measurement

Band Width: 0 - 100 KHz

Voltage range: 0-80/600Vdc

Measurement range: 0-3.2/24Vdc

Resolution: 0.01 /0.1Vdc

Current range: 0-8/3.2Vdc

Measurement range: 0-8/1.6Vdc

Resolution: 0.001/0.01A

Accuracy: ±5% of (Reading + Range)

Sampling Rate: 100KHzv

Update Rate:  50-1000 ms

Resolution: 1mS

Dimming Measurement

Band Width: 100 KHz

Current range: 0-8/3.2Vdc

Sampling Rate: 100KHzv

Update Rate:  50-1000 ms

Frequency Range: 10Hz~35KHZ

Duty(ton) Range: 3uS~90mS

Resolution: 1uS

Detail

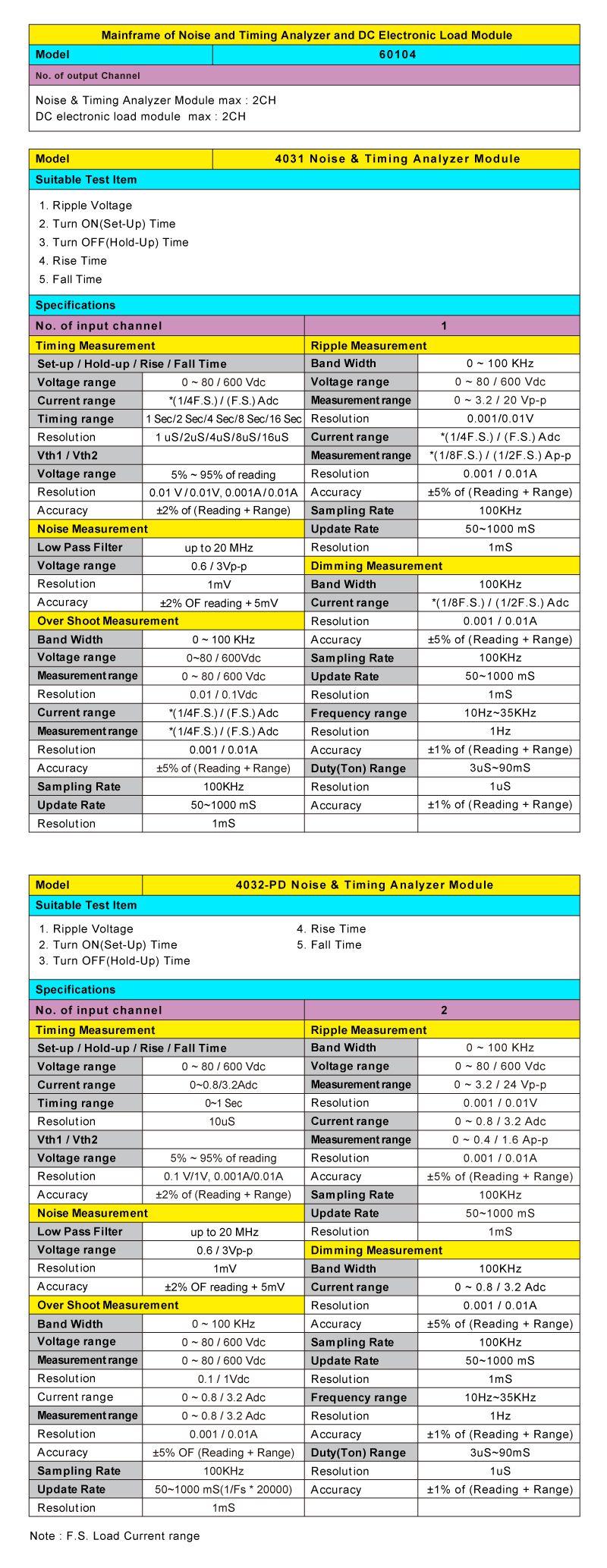

Datasheet
