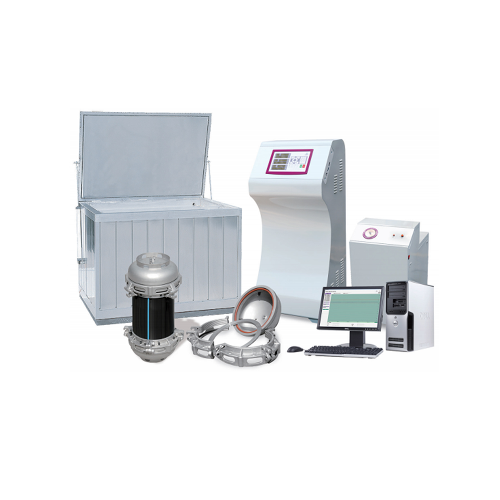

Samyon SYHBT-22 塑料管材试验机Syhbt系列水压试验机 (0.2Mpa ~ 10 Mpa)

Application:

SYHBT is mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature. It is applicable to thermoplastic pipes intended for the conveyance of fluids. It confirms to ISO1167,ASTM D1598 and ASTM D1599.

Parameter:

Pressure range: 0.2Mpa to 10 Mpa (16Mpa/20Mpar as option)

Pressure resolution: 0.001Mpar (0.01bar or 1PSI)

Pipe diameter range: 2-1600

Test stations: 3,5,10,20 (others on request)

Control mode:  Industrial PC(touch screen)

Printing mode: Saved on removable device, print through PC

Timing range: 0-10000h

Time resolution: 1s

Time mode: Counter-up, counter-down
