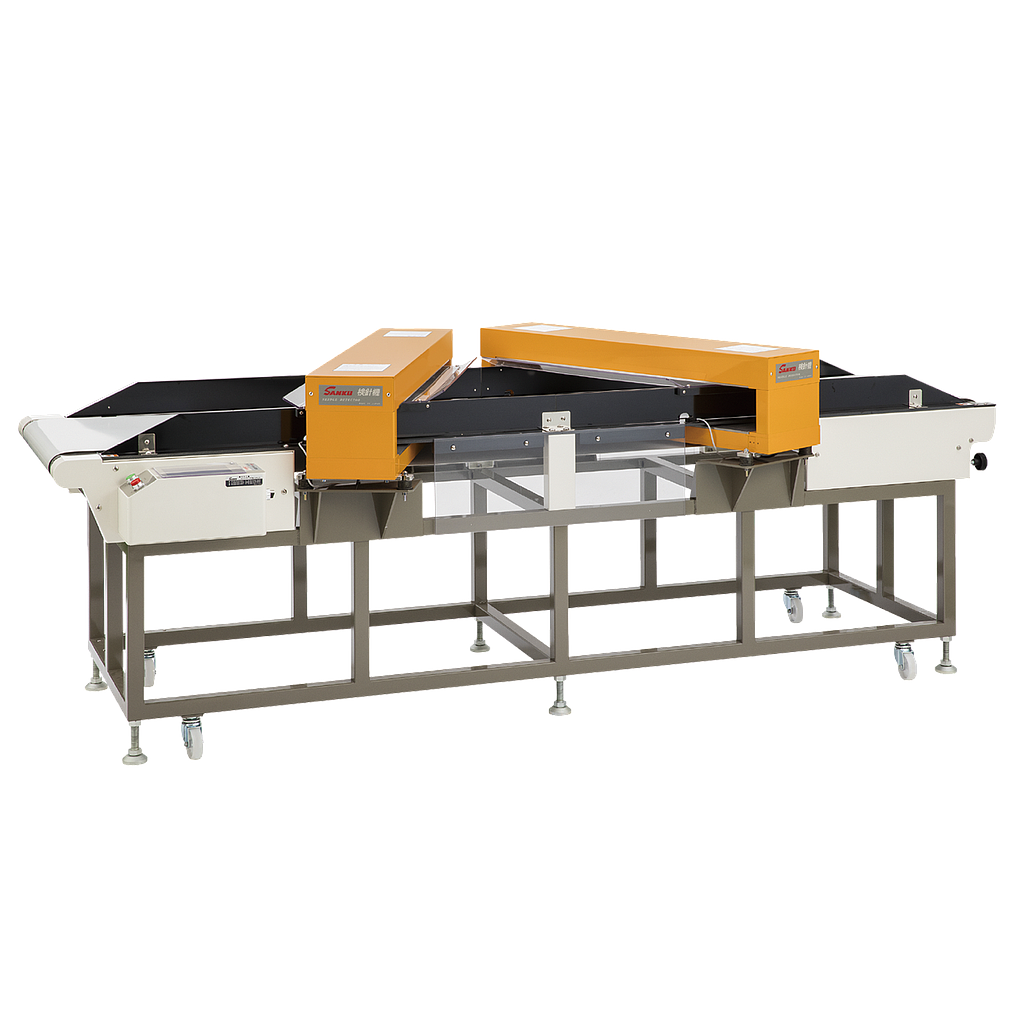

SANKO APA-6800W 输送式探针器 (Twin heads; 600mm; 30m/min)

Detecting method: Magnetic induction

Detecting ability: Steel ball φ0.8,φ1.0,φ1.2,φ1.5,φ2.5

Detecting area/ Passing width: 600mm

Passing height:

+ 100mm standard (with guide: passing height 90mm)

+ 140mm (with guide: passing height 130mm)

Alarm device: Buzzer, lamp, belt stop (with backward run function)

Belt speed: 30m/min. (50Hz), 36min. (60Hz)

Power source: AC100V 50/60Hz about 300VA

Dimensions:

+ 970(D)×990±50(H)×2600(W), detecting height 100mm

+ 970(D)×1030±50(H)×2600(W), detecting height 140mm

Weight: ≈350kg

Pass line: 800±50mm

Option: emergency stop SW, foot SW, remote SW

Note: Reversal-V-shape twin heads
