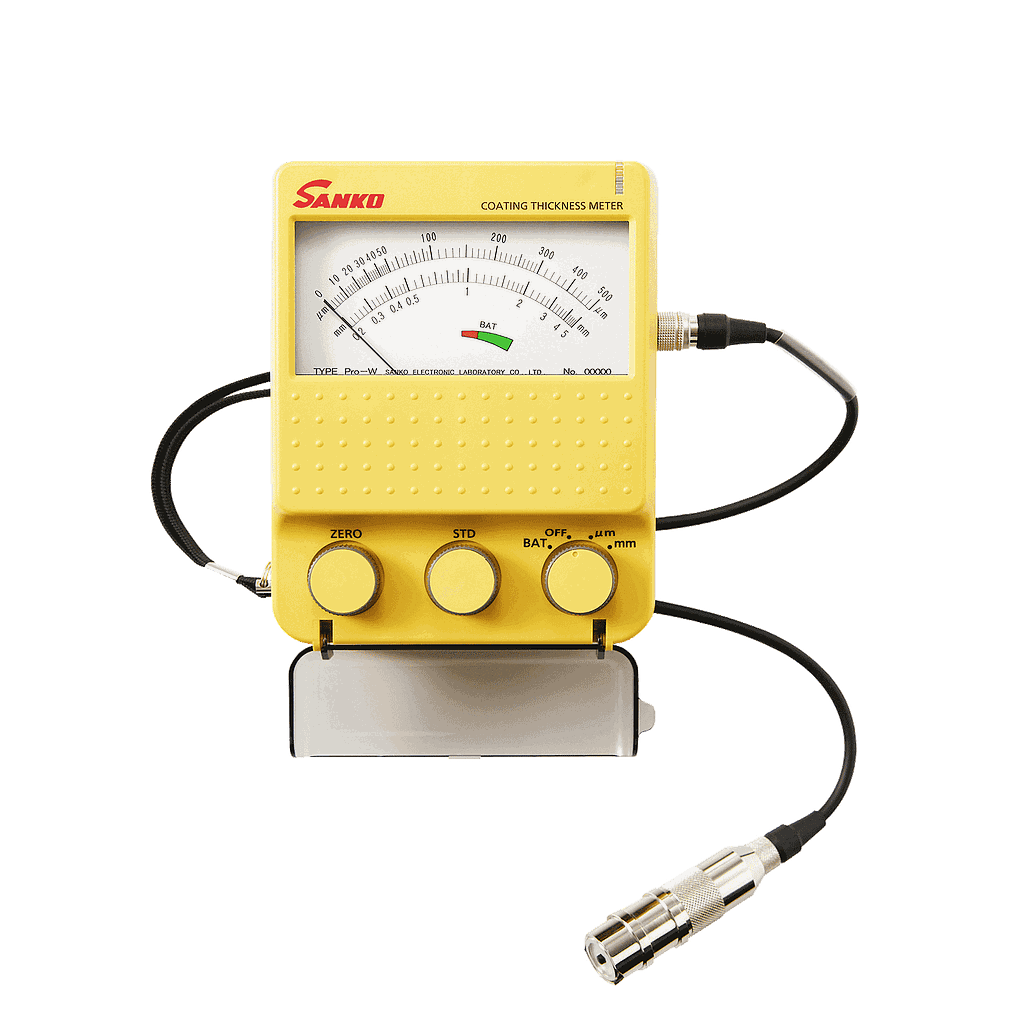

SANKO Pro-S 电磁涂层测厚仪 (1 pole; 0~500μm; 0.2~5mm)

Method: Electromagnetic Type

Measuring object: Non-conductive film and non-magnetic film on the ferrous substrate (including and ferritic stainless such as SUS430 etc.)

Measuring range: 0~500μm; 0.2~5mm

Measuring accuracy:

±2μm against uniform surface

±5% of reading (whichever is larger)

Probe:

+ One point contact constant

+ Pressure type: φ17x85mm

+ Electrode: Ultra anti-abrasive with CVD treatment

Power source: Dry batteries (1.5 V) x 6 pcs

Operating temperature: 0~40 (w/o condensation)

Dimensions: 137(D)x50(H)x110(W)

Weight: ≈470g

Accessories: Carrying case, standard plates, Standard plate case, Batteries, Instruction manual
