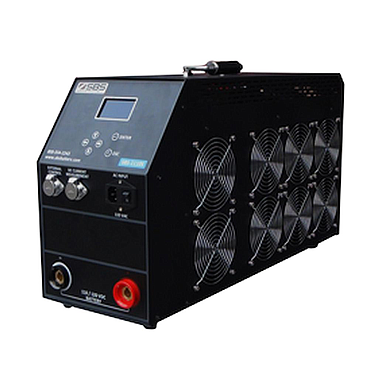

SBS SBS-1230S 电池容量测试仪(150 V,300A)

DC Voltage Range: 90–150 Vdc
DC Current Range (Amps): 0–300 A
DimensionsL x W x H (in.) : 36 x 9 x 25
Weight (lb.): 110
Display: LCD (128 x 64 pixels)
Input: During discharge: real time voltage / current / test
time / capacity discharged (Ah)
User can set: end system voltage / test time /
capacity discharged (Ah)
Test Type: Unit holds the set current throughout the test
Protection: Overheat / Overload / Over voltage protection
with audible alarm and screen warning
Power Supply: DC power supply (from tested
battery)125 and 250 Vdc units use AC power supply (110
Vac 60 Hz)
Includes
• Main unit
• Instruction manual
• 9 ft. DC cables
• Carrying case with wheels
Optional Accessory
8400-600A : 600 DC Current Clamp
SLAVE-CAB-8400>S : Paralleling Cable, S-Series to S-Series/SBS-8400/
SBS-4815
SLAVE-CAB-8400>(2)S : Paralleling Cable, S-Series to (2) S-Series/SBS-8400/SBS-4815
BCT110/220-1000: 750 Watt Voltage Transformer 110/220 Vac 50/60 Hz
Pelican case upgrade available for select models
