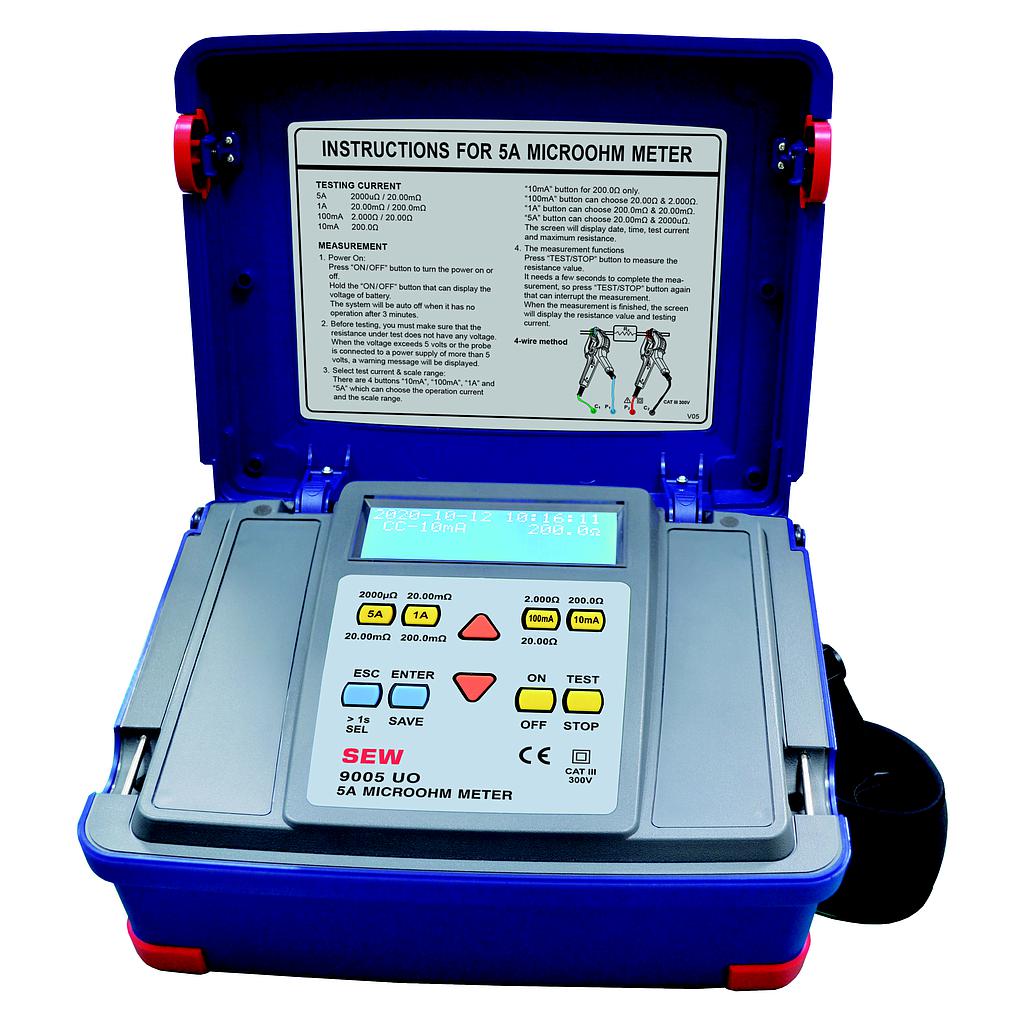

SEW 9005 UO 微欧姆计 (5A, 2000μΩ~200.0Ω)

Measuring ranges/ resolution

2000μΩ / 1μΩ

20.00mΩ / 0.01mΩ

200.0mΩ / 0.1mΩ

2.000Ω / 1mΩ

20.00Ω / 0.01Ω

200.0Ω / 0.1Ω

Accuracy ±(1% + 4 dgt)

Testing current

5A: 2000μΩ / 20.00mΩ

1A: 20.00mΩ / 200.0mΩ

100mA: 2.000Ω / 20.00Ω

10mA: 200.0Ω

General

Operating temperature: 0~40°C

Operating humidity: 80% RH

Dimensions: 322(L) × 260(W) × 135(D)mm

Weight: (battery included) Approx. 3328 g

Power source: 1.5V "C" alkaline battery × 8

Safety standard IEC/EN 61010-1 CAT III 300V EN 61326-1

Accessories

Instruction manual

Test leads

Shoulder belt

Alkaline batteries
