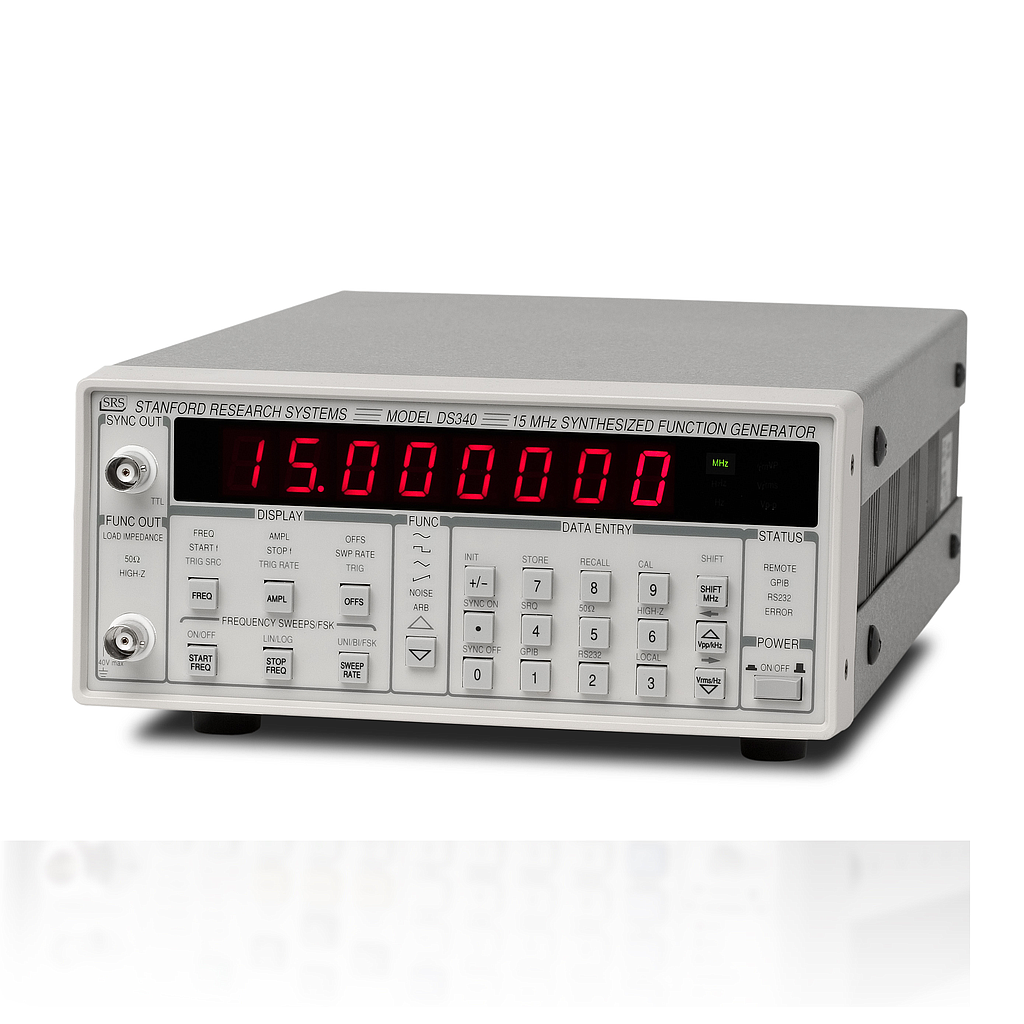

SRS DS340 函数信号发生器 (1 µHz - 15.1 MHz)
制造商: Stanford Model: DS340 保障: 12 Month - 报价要求
- 联系
Frequency Range: Sine, Square, Ramp, Triangle
Max. Frequency: 15.1 MHz, 15.1 MHz, 100 kHz, 100 kHz
Resolution: 1 µHz, 1 µHz, 1 µHz, 1 µHz
Noise: Max. Frequency: 10 MHz
Arbitrary: Max. Frequency: 10 MHz; Resolution: 40 MHz/N (sample rate)
Amplitude:
Range: 50 mVpp to 10 Vpp into 50 Ω, 100 mVpp to 20 Vpp into High-Z
Resolution: 3 digits (DC offset = 0 V)
Offset: ±5 VDC (50 Ω), ±10 VDC High-Z)
Offset resolution: 3 digits
Accuracy: 0.1 dB (sine output)
Sine Wave:
Spurious response: <-65 dBc to 1 MHz, increases by 6 dB/oct above 1 MHz
Harmonic distortion:
DC to 20 kHz <-70 dBc
20 kHz to 100 kHz: <-60 dBc
100 kHz to 1 MHz: <-50 dBc
1 MHz to 15 MHz: <-40 dBc
Phase noise: <-55 dBc (30 kHz band centered on carrier)
Square Wave:
Rise/fall time: <15 ns ± 5 ns (10 % to 90 %)
Asymmetry: <3 ns + 1 % of period
Overshoot: <2 % of amplitude (full output)
Ramps and Triangles:
Rise/fall time: 45 ns (10 MHz Bessel filter)
Linearity: ±0.1 % of full scale
Settling time: 200 ns (0.5 % of final value)
Arbitrary Waveforms:
Sample rate: 40 MHz or integer sub-multiples
Waveform length: 8 to 16,300 points
Vertical resolution: 12 bits
Rise/fall time: 45 ns (10 MHz Bessel filter)
Sweeps:
Type: Linear and logarithmic (phase continuous)
Span: Linear (full frequency range), log (6 decades)
Sweep rate: 0.01 Hz to 1 kHz
General:
Interfaces: Optional RS-232 and GPIB with DOS based arbitrary waveform software (AWC). All instrument functions can be controlled over interfaces.
Non-volatile memory: up to 9 sets of instruments settings can be stored and recalled
Dimensions: 8.5" × 3.5" × 13" (WHL)
Weight: 8 lbs.
Power: 35 W, 100/120/220/240 VAC, 50/60 Hz
