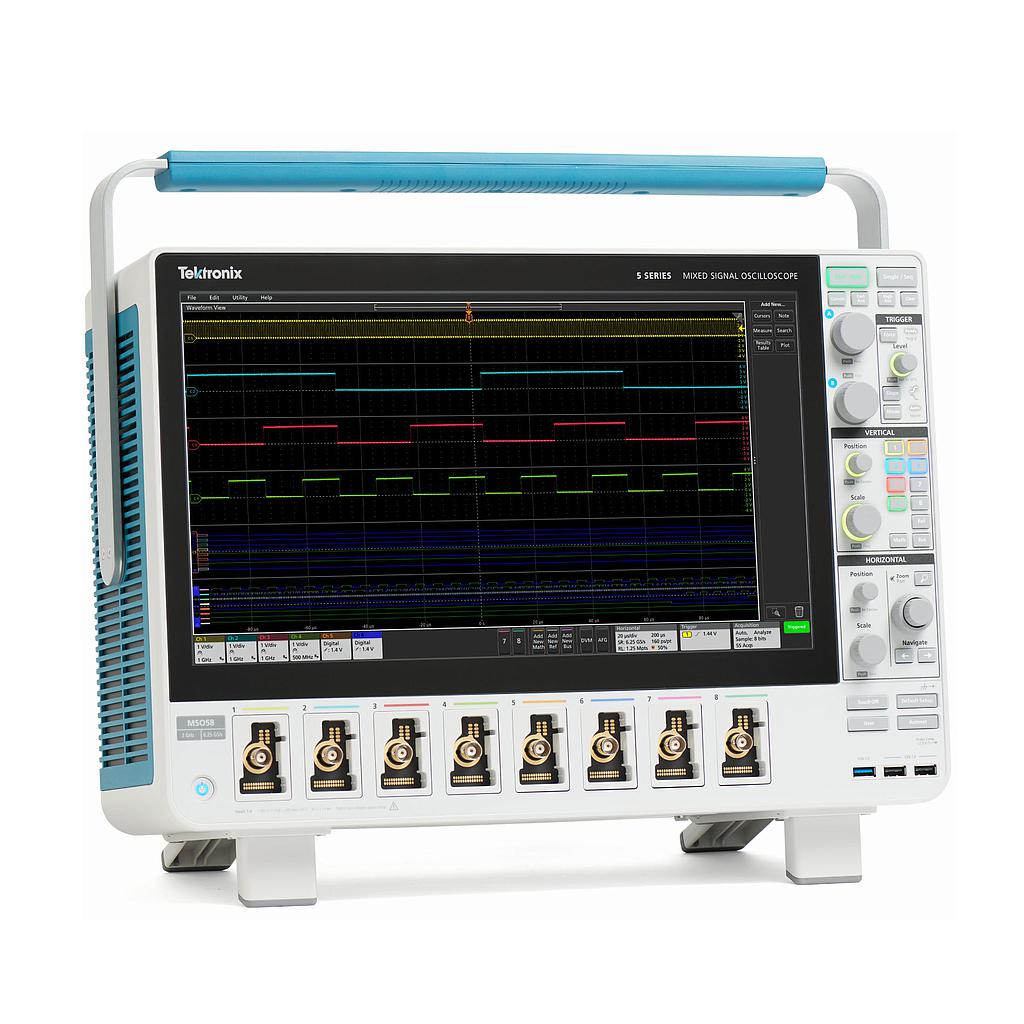

TEKTRONIX MSO54 5-BW-1000 混合信号示波器 (1GHz, 4CH analog, 32CH digital)

FlexChannel inputs: 4

Maximum analog channels: 4

Maximum digital channels (with optional logic probes): 32

Bandwidth (caculated rise time): 1 GHz (400 ps)

ADC Resolution: 12 bits

Sample Rate: 6.25 GS/s on all analog / digital channels (160 ps resolution)

Waveform Capture Rate: >500,000 wfms/s

Arbitrary/Function Generator (opt.): 13 predefined waveform types with up to 50 MHz output

Vertical system - analog channel

Input impedance: 50 Ω ± 1% 1 MΩ ± 1% with 13.0 pF ± 1.5 pF (< 2 GHz models)

Input sensitivity range:

1 MΩ 500 µV/div to 10 V/div in a 1-2-5 sequence

50 Ω 500 µV/div to 1 V/div in a 1-2-5 sequence

Maximum input voltage:

50 Ω: 5 VRMS, with peaks ≤ ±20 V (DF ≤ 6.25%)

1 MΩ: 300 VRMS , CAT II

Vertical system - analog channel

Absolute maximum input voltage, typical: ±42 V peak

Minimum voltage swing, typical: 400 mV peak-to-peak

Input impedance, typical: 100 kΩ

Horizontal system

Time base range: 200 ps/div to 1,000 s/div

Sample rate range:

1.5625 S/s to 6.25 GS/s (real time)

12.5 GS/s to 500 GS/s (interpolated)

Trigger system

Trigger modes: Auto, Normal, and Single

Trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup and Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger

Display

Display type: 15.6 in. (395 mm) liquid-crystal TFT color display

Display resolution: 1,920 horizontal x 1,080 vertical pixels (High Definition)

Power source

Power consumption: 400 Watts maximum

Source voltage:

100 - 240 V ±10% at 50 Hz to 60 Hz

115 V ±10% at 400 Hz ±10%
