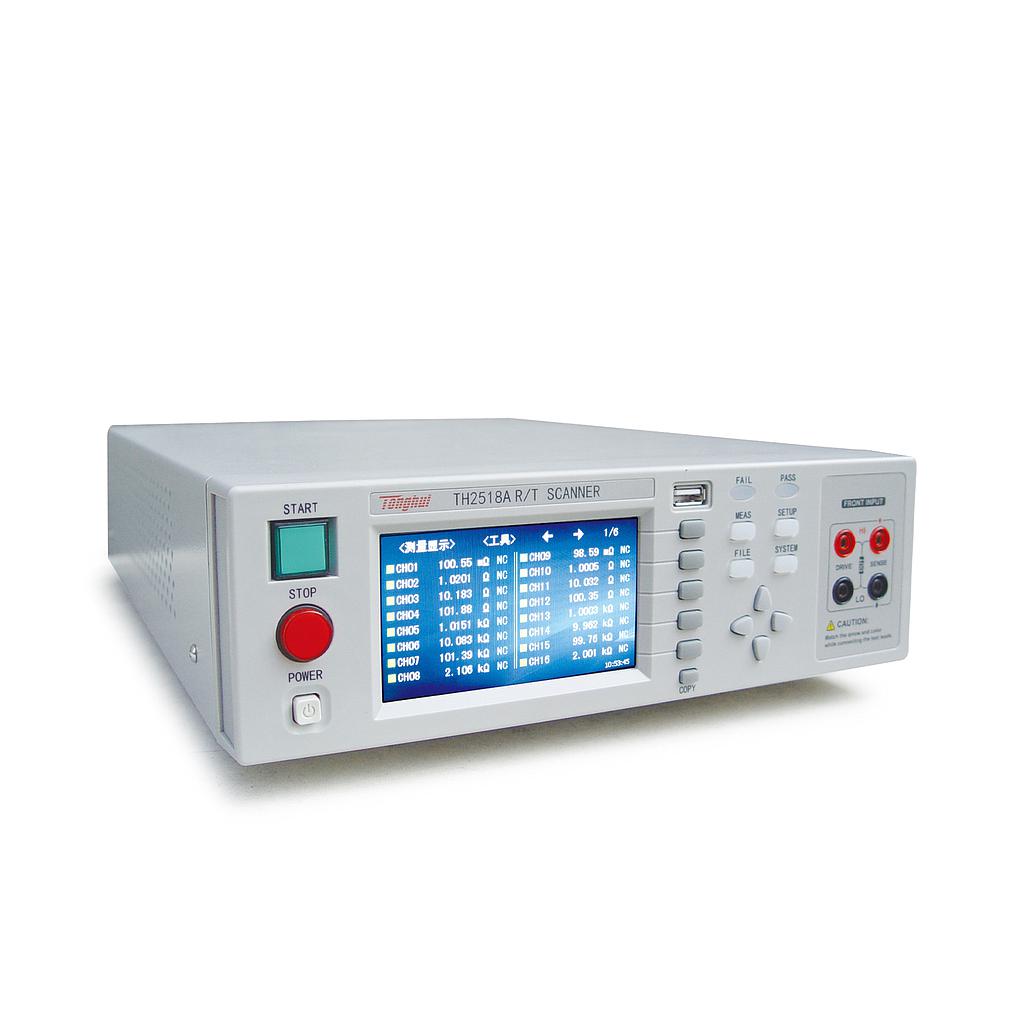

Tonghui TH2518A Resistance/ Temperature Scanner (10μΩ~200kΩ)

Measuring Parameters: DC resistance

Resistance Test Range: 10μΩ — 200kΩ

Basic Resistance Test Accuracy: 0.05%

Resistance Range: Auto and manual (200mΩ, 2Ω, 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ)

Measurement Mode: Stand-alone, scanning

Scanning Channels: 15 channels/boards, and up to 6 boards and 90 channels can be inserted.

Test Terminal Selection of Test Channel: Arbitrary configuration between channels (programmable)

Test Current: ≤100mA

Measurement Speed: single board: 100 times / sec, 40 times / sec, 2 times / sec, 6 boards: 600 times / sec, 240 times / sec, 12 times / sec

Display Results: Simultaneous display the test results of 16 channels and support page turning

Short-circuit Clear Correction: Support full-scale short-circuit clearing for all channels

Comparators: Comparison boundaries are set separately for each test channel

Limit Mode: ABSDev、ABS、%

Trigger Mode: Auto trigger, manual trigger, bus trigger, Handler trigger, foot switch trigger

Test Terminal: Four-terminal test

Storage: 30 sets of instrument parameters
