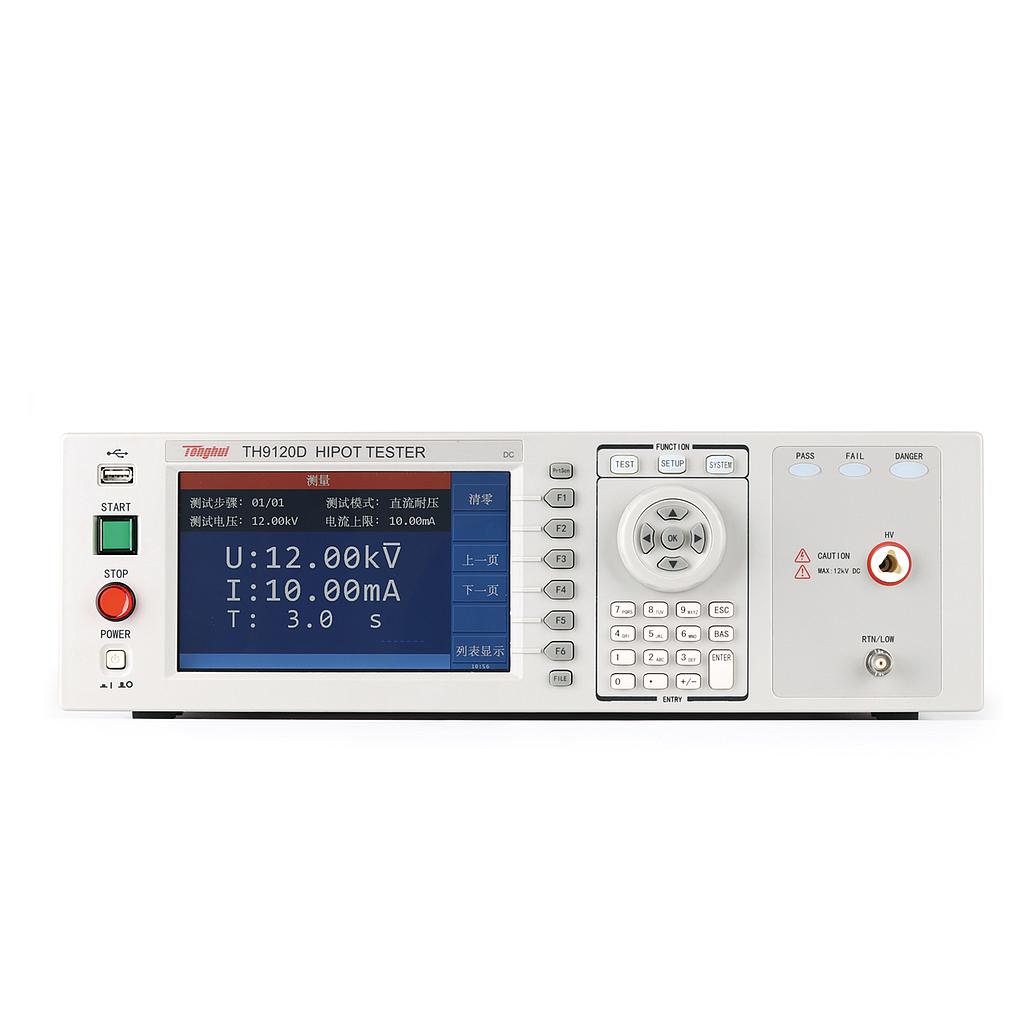

Tonghui TH9120D Hipot Tester (0.05-12.0kV)

Test Mode: DC/IR

Withstand Voltage Test

Output Voltage DC:

- Voltage Range: 0.05-12.0kV

- Output Power: 120VA(12.0kV  10mA)

Load Change Rate: ±(1% set value + 10V) (rated power)

Voltage Resolution: 2V

Voltage Accuracy: ± (1% set value + 0.1% full scale)

Current Test Range: DC:

- Current Range: 0.0001mA-10mA

- Current Resolution: 0.1uA

- Current Accuracy: ±(1% reading + 0.5% full scale)

Fast Discharge Function: Automatic discharge after test (DCW)

Insulation Resistance Test:

Output Voltage: DC:0.05-5.0kV

Voltage Resolution: 2V

Voltage Accuracy: ± (1% set value  + 0.5% full scale)

Resistance Test Range: 0.1MΩ– 50.0GΩ
