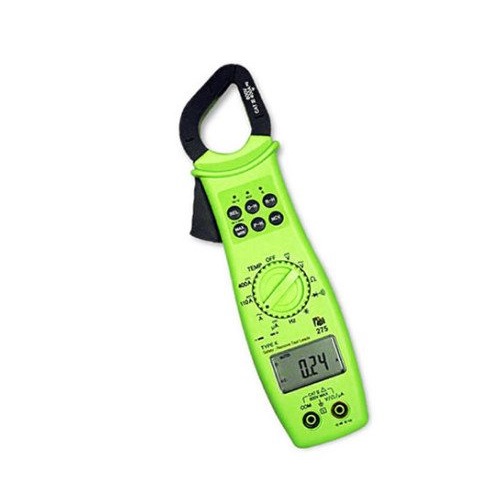

TPI 275 数字钳位计
制造商: TPI Model: 275 - 联系
Basic DC Accuracy: 0.5%
DCV: 600V / 0.1mV
ACV: 600V / 0.1mV
DCA: 400A / 0.01A
DCμA: 1100μFA / 0.01μA
DCA: 400A / 0.01A
Resistance (maximum): 110MΩ / 0.1Ω
Frequency (maximum): 110MHz / 0.01Hz
Capacitance (maximum): 110mF / 0.001nF
Temperature (maximum): 1000°F / 0.1°F
Diode: Test Current Max 1.5mA
Continuity: Buzzer sounds at approx. 35Ω Response time; 50ms
Agency Approval: CEIEC 1010: CATIII; 600V cULus 3111
Overall Dimensions: 10” x 1.3” x 2.5” (255 x 32.5 x 65mm)
Weight: .8 lbs (363g)
