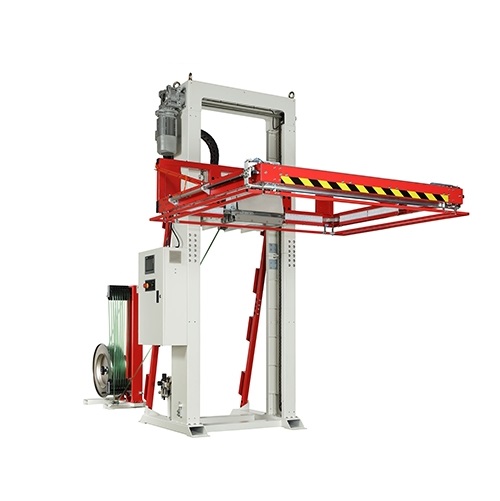

Transpak TP-733H Castor III 打包机 (PP & PET strapping, 12-19mm, 1100-3200N)

Capacity: Up to 60 pallets/hour (3 parallel straps)

Strap Type: PP or PET strapping

Strap Width: 12 mm, 15.5 mm, or 19 mm

Tension Range

1100 - 3200 N (standard)

200 - 1200 N (optional)

Minimum Strapping Height

(a) With conveyor: 160 mm above conveyor surface

(b) Without conveyor: 240 mm above floor

Maximum Package Height

Standard: 2,200 mm

Option: 2,700 mm

Strap Core Size: 406 mm/200 mm/230 mm/280 mm

Pneumatic Source & Air Consumption

6 bar

7.1 liter/cycle

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Options

Floating head

Free standing operation desk (3M)

Light tower with low strap sensor

Dual channel E-Stop

Lower tension range (200 - 1200 N)

HMI and PLC mounted on the opposite side

Strap program selecting by remote control (4-bit binary input)

No safety rack

Uplifted support

Maximum package height up to 2700 mm

Details

Video

Watch as reference: TP-733H Castor III & TP-733VLM Pollux III Pallet Strapping Machines - TRANSPAK

Datasheet


The enhanced TP-733H provides accurate strapping output on all natural-sized loads with consistent performance. It maximizes the productivity and minimizes the production cost for users. Designed for simple and quick connection to the master control system, TP-733H can easily fit in various end-of-line packaging sectors. It is your best choice for fully automatic operation in various applications, including palletized products, home appliance, bricks & blocks, etc.

Features

ARES TP-733-SH strapping head

Index strapping head

Strap guide arm

Safety rack

Friction weld sealing technology

Siemens PLC and HMI

Free access to strap guides

Swivel dispenser set

Adjustable sealing and cooling time

Strap end ejector

Preprogram setting

Easy to retrofit
