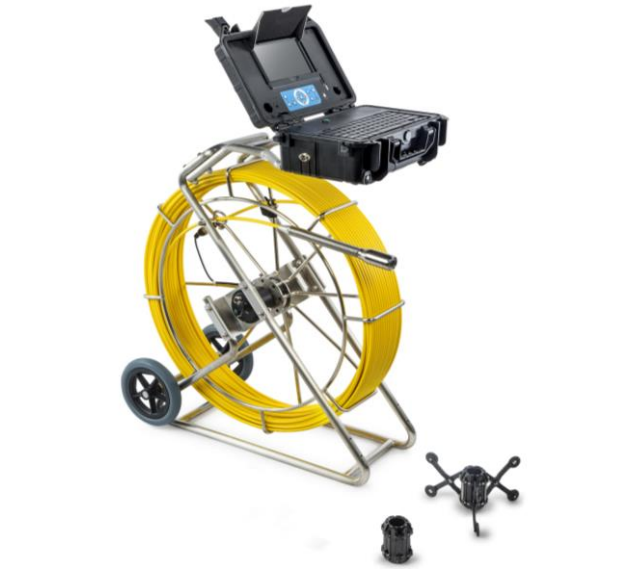

TvbTech 3299FB 下水道排水管检查摄像系统 (60m cable, 752Hx 582V pixels, Φ38mm)

Camera Head

- Material: #304 Stainless Steel

- Dimension: Φ38mmx81mm(Main dody)

- Sensor: 1/3'' Sony CCD,480TVLines

- ViewAngle: 120°

- Focal Distance: 12-120cm(4.71-47’’)

- LEDs: 12pcs high light LEDs

- Waterproof: Max.20m(65') under water

Push Cable

- Cable dia. 9mm

- Cable Material: Fiberglass

- Available Length: 60m(197ft)

- Wheel Material: Stainless Steel

Monitor

- LCD: 7'' 16:9 high definition color LCD monitor

- Resolution: 800x480 R.G.B

- Encoding: H.264

- Storage: SD Card slot to store still images or videos

- Sound: Local audio recording

- Battery: Built-in rechargeable battery

- Work time: 4-5 hours

- Charge time: 6-7 hours

- Menu Language: English, German, French,Spanish, Italian,Chinese, Japanese, Russian, Portuguese

Including

- 1 x 38mm Camera head

- 1 x 60m push cable

- 1 x professional 7" monitor with DVR

- 1 x 72 Roller Skid (for pipe diameter 4"-5")

- 1 x 120 universal Skid (for pipe diameter 5 "- 12")

- 1 x battery pack

- 1 x remote control

- 1 x screw driver

- 1 x power adapter

- 1 x car charger

- 1 x universal installation brackets

- 1 x U-Shape wheel extension handle

Optional Functions

- The option of built-in 512Hz for 38mm head

Details

 Manual


Brochure
