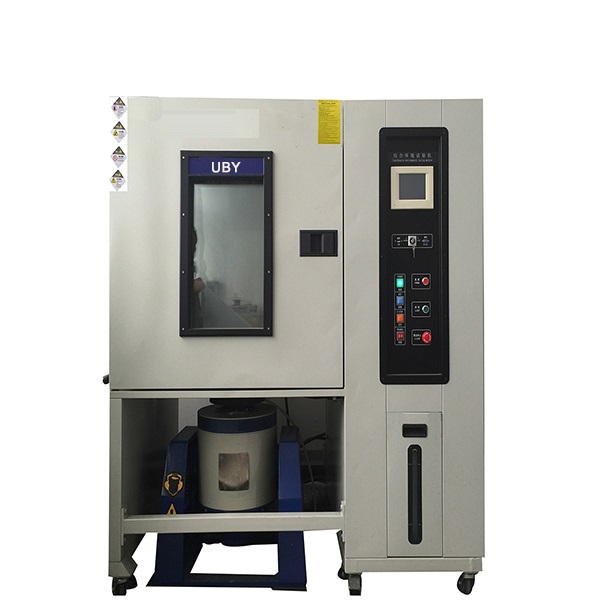

Uby Tech UP-6195C Temperature Humidity Vibration Test Chamber (63L~6000L, 1000*1000*1000)

Capacity: 63L to 6000L

Cooling rate: 2-3℃/min (standard), 5℃/min, 10℃/min , 20℃/min as option

Vibration: maximum up to 5000kgf, 100g

Inner chamber size(mm)W*H*D: 1000*1000*1000

Exterior chamber size(mm)W*H*D: 1900*1200*1520

Max table-board size of vibrostand (mm)

- Horizontal: 400*400

- Vertical: 400*400

Temperature range: -160℃,-140℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃,-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃

Humidity range: 20%~98%R.H (10%~98%R.H;5%~98%R.H Optional)

Temp.&Humi fluctuation: ±0.5℃, ±2%.

Temp.Humi.Uniformity: ±1℃, ±2%.

Temp.humi Deviation: ≤±2℃/ ±3%RH.

Heating up time: About 3~4℃/min.(Customized requirements:Fast temperature change rate:5℃~25℃/min,linear average or nonlinear average).

Cooling down time: About 0.7℃~1℃/min (Customized requirements:Fast temperature change rate:5℃~25℃/min,linear average or nonlinear average).

Material:

- Inner chamber material: SUS#304 stainless steel plate

- Exterior chamber material: Stainless steel plate+ powder coated

- Insulation material: PU & Fiberglass wool


Accessories: Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
