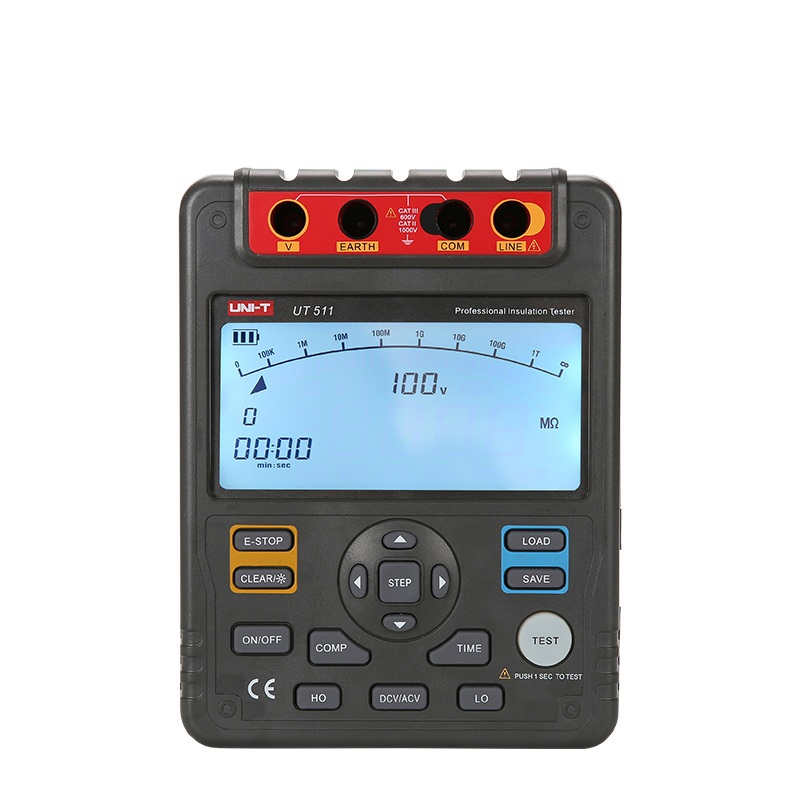

UNI-T UT511 绝缘电阻测试仪 (1000V,10GΩ)

Isulation resistance (Ω):

100V~1000V: 0%~10%

100V: 0.1MΩ~500MΩ ±(3%+5)

250V: 0.5MΩ~2GΩ ±(3%+5)

500V: 1MΩ~4GΩ ±(3%+5)

1000V: 2MΩ~10GΩ: ±(3%+5)

DC voltage (V): 1000V ±(2%+3)

AC voltage (V): 750V: ±(2%+3)

Short-circuit current: <2mA

Low resistance (Ω): 0.1Ω~999.9Ω ±(1%+3)

Comparison function: Yes

Polarization index (PI): Yes

Dielectric absorption ration (DAR): Yes

Low resistance: 999.9Ω

Display count: 10000

Auto range: Yes

DC voltage: 1000V

AC voltage: 750V

Data storage: 18

High voltage prompt: Yes

LCD backlight: Yes

Analog bar: Yes

Low battery indication: Yes

Overload prompt: Yes

Light alarm: No

Buzzer alarm: Yes

Auto power off: Yes

Meets IEC 61557: No

Category ratings: CAT III 600V

Power: 1.5V battery (LR14) x 8

Display: 123mm x 58mm

Product color: Red and grey

Product net weight: 1.2kg

Product size: 202mm x 155mm x 94mm

Standard accessories: 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries
