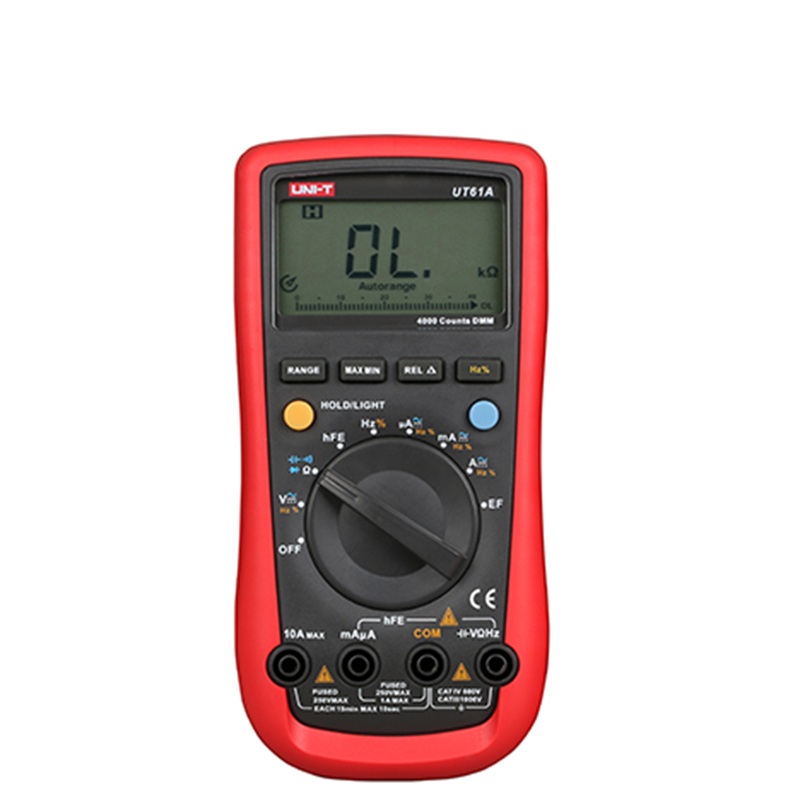

UNI-T UT61A 数字万用表 (1000V,10A, ±0.5%)

DC voltage (V): 1000V ±(0.5%+1)

AC voltage (V): 750V ±(1%+3)

DC current (A): 10A ±(1%+2)

AC current (A): 10A ±(1.2%+5)

Resistance (Ω): 40MΩ ±(1%+2)

Capacitance (F): 4000μF ±(3%+5)

Frequency (Hz): 10Hz~10MHz ±(0.1%+4)

Power: 9V battery (6F22)

Display: 65mm x 43mm

Product color: Red and grey

Product net weight: 370g

Product size: 180mm x 87mm x 47mm

Standard accessories: Battery, test leads, multi-purpose socket

Features:

Display count: 4000

Auto range: Yes

Bandwidth: 45Hz~400Hz

True RMS: No

Duty cycle: 0.1%~99.9%

Diode test: Yes

Transistor test: Yes

Continuity buzzer: Yes

NCV: Yes

MAX/MIN: Yes

Relative mode: Yes

USB: No

Bluetooth®: No

AC+DC: No

Peak hold: No

RS-232: No

Analog bar: Yes

Data hold: Yes

Auto power off: Yes

LCD backlight: Yes

Input alarm: No

Input impedance: ≥10MΩ

Category ratings: CAT III 1000V CAT IV 600V

Drop test: 1m
