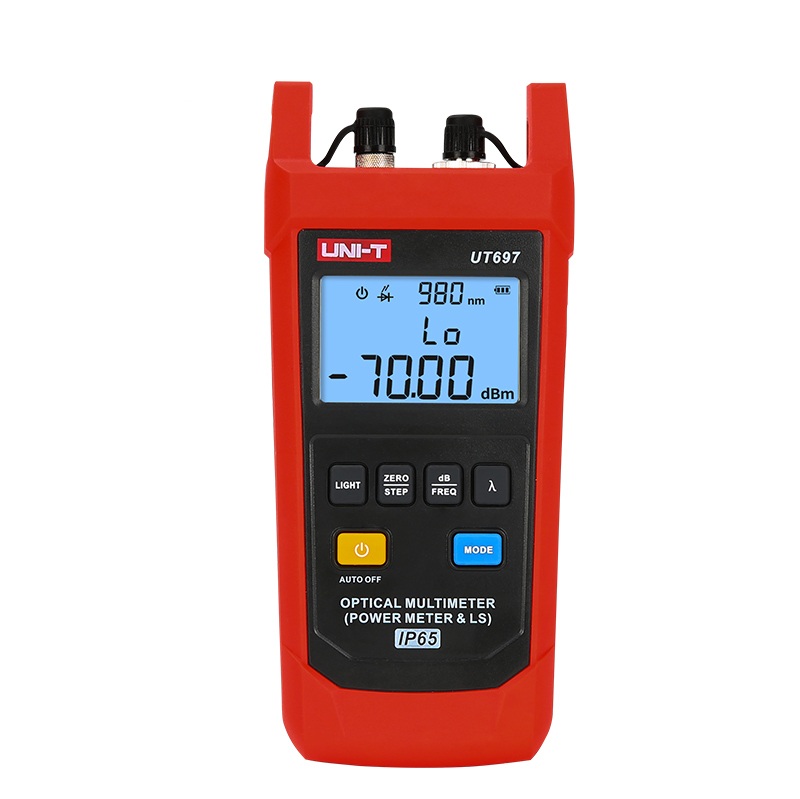

UNI-T UT697 光多用表 (2000Hz,-10dBm)

Optical power meter:

Wavelength range: 800nm~1700nm

Calibrated wavelength: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm

Measurement range: 70dBm~10dBm

Uncertainty: ±5%

Display resolution: Linear: 0.1%, log: 0.01dBm

Connector: FC, SC, ST

Detector type: InGaAs

Light source:

Wavelength: 1310nm, 1550nm

Typical output optical power: -4dBm

Internal modulation: 0Hz/270Hz/1000Hz/2000Hz

Adjustable output optical power: -4dBm,-6dBm,-8dBm,-10dBm

Luminescent device: FP-LD

Optical interface: FC/PC

Applicable optical fiber: SM, MM

Flashlight: Yes

IP rating: IP65

Drop proof: 2m

Power: 1.5V battery (LR6) x 3

Display: 63mm x 40mm

Product color: Red and grey

Product net weight: 300g

Product size: 189mm x 87mm x 45mm

Standard accessories: Batteries, carrying bag
