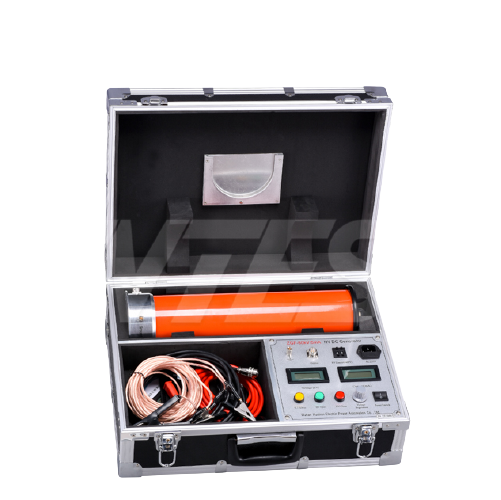

Wuhan ZGF-120/5 DC高压试验套 (120kV, 5mA)

Rated voltage (kV): 120

Rated current (mA): 5

Rated power (W): 600

Machine quality (kg): 10

Machine volume (mm3): 565*390*190

Double cylinder height (mm): 535

Output voltage accuracy: ±(1.0%Reading ± 2 words)

Output current accuracy: ±(1.0%Reading ± 2 words)

Ripple coefficient: ≤0.5%

Way of working: Intermittent use, rated load 30 minutes

Overload capability:

- No-load voltage can exceed 10% of rated voltage for 10 minutes

- The maximum charging current is 1.25 times the rated current

- Power supply:AC220V±10% 50Hz

Working environment:

- Temperature:-10-40°C

- Relative humidity: no more than 85% at room temperature of 25°C (no condensation)

- Altitude: below 1500 meters
