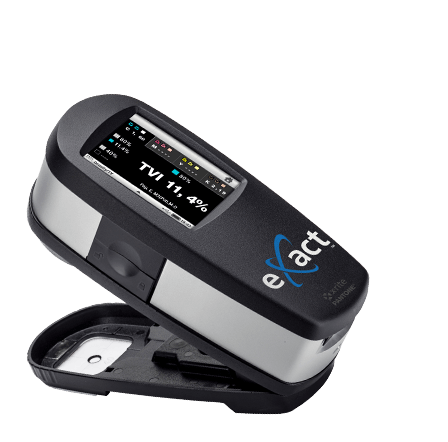

Xrite eXact 基本密度计 (400 nm~700 nm; 2 眼)

Aperture: 2 mm, 4 mm

Battery: Lithium Ion, 7.4VDC, 2200mAh

BestMatch Feature: No

Calibration: Automatic on integrated white reference

Communication Interface: USB 2.0; No Bluetooth

Connectivity: USB

Density Range: 0.0 D – 3.0 D

Density Standards: Status A, E, I, T and G

Dimensions (length, width, height): 18 cm x 7.8 cm x 7.6 cm

7.1" x 3.1" x  3.0"

Humidity: 30 to 85% RH (non-condensing)

Industry Standards: ISO 5-4:2009(E), ISO 13655:2009

Instrument Display: Color touch-screen, 320 x 240 pixels

Internal Temperature & Humidity Sensor: 30 to 85% RH (non-condensing)

Languages Supported: Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese

Light Source: Gas filled tungsten (illuminant type A) and UV LED

Macintosh: MacOS X 10.10, 10.11, 10.12, 10.13

Measurement Conditions: M0, M1 (part 1), M1 (part 2) , M2, M3

Measurement Geometry: 45°/0° ring illumination optics, ISO 5-4:2009(E)

Measurement Time: < 1 sec

NetProfiler Support: No

Operating Temperature Range: 10°C to 35°C; 50°F to 95°F

Pass / Fail: No

Short Term Repeatability - Density: '+/- 0.01 D for CMYK

Software Development Kit: Yes

Spectral Analyzer: DRS spectral engine

Spectral Range: 400 nm to 700 nm

Storage Temperature Range: -20° to 50°C; -4° to 122°F

Voltage: 12 VDC at 2.5 A

Weight:  700 g; 1.6 lbs.

What's Included?: USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate
