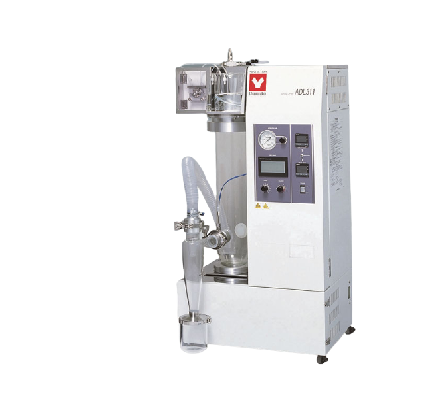

Yamato ADL311S-A Spray Dryer (0〜0.3MPa)

Temp. adjusting unit setting range: 40 to 220°C (inlet temperature), 0 to 60°C (Outlet temperature)

Temperature adjusting accuracy: Inlet temperature±1°C

Drying air amount adjusting range: 0 to 0.7m3/min

Spray air pressure adjusting range: 0 to 0.3MPa

Liquid sending pump flow rate range: 0 to 26 mL/min

Spray air line washing function: Spraying at the nozzle tip, Manual pulse jet system

External output: Inlet temperature, Outlet temperature, Temperature outlet (4-20 mA)

Temperature adjusting device: PID digital temperature adjusting device

Touch panel: Blower, Heater, Liquid sending pump, Pulse jet switch, error display

Control select switch: Inlet temperature, Outlet temperature control switch(Outlet temperature control is conditional)

Temperature sensor: K-thermocouple

Heater: 2.0kW (at200V) to 2.88kW (at240V)

Liquid sending: Fixed amount peristaltic pump

Spraying air pump: For water soluble samples air compressor is used (sold separately). For organic solvent samples the integrated compressor in GAS410 is used (No separate air compressor required).

Service outlet: For stirrer: AC100V, MAX. 2A

Suction blower: Bypass blower

Filter: Suction filter, Exhaust filter

Recovery of solvent: Solvent recovery unit GAS410 (Sold separately) is used

Spray nozzle cooling mechanism: Connector: nipple×2, O.D.: ø10.5mm

Spray air connection diameter: Nipple diameter: ø7mm

Spray air pressure: Bourdon tube: 0.3 MPa

Exhaust connecting diameter: ø50mm

Safety function: Inlet / Outlet temperature overheat, Sample feed reverse rotation mechanism, Over current electric leakage breaker, Nozzle connection error

External dimensions（W×D×H mm）: 580×420×1125mm

Power Source: AC200-AC240V 16-18A

Single phase

Weight: 80kg

Accessories: Silicon tubes (with a stopper)×3, Exhaust duct (with one hose band)×1, Outlet temperature sensor, Spray air tube, Sample box, Static electricity removal earth, "Tetron" braided tube hose 5m (with two hose bands)
