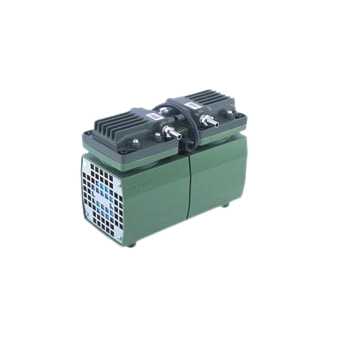

Yamato DA20D Diaphragm Vacuum Pump (24 L/min)

Effective pumping speed (50/60Hz): 20/24 L/min.

Ultimate pressure: 5.3 x 10³ Pa

Motor: AC100V, 60W, 4P, Capacitor run

Inlet, outlet pipe diameter: O.D. 9 x I.D. 5mm (Rc 1/4)

Ambient temperature: 7 to 40 ˚C

External dimensions(W×D×H mm): 118×242×178mm

Power Source: AC115 V/AC220V

Single-phase with step-down transformer

Weight: 7.2kg

Detail

Datasheet
