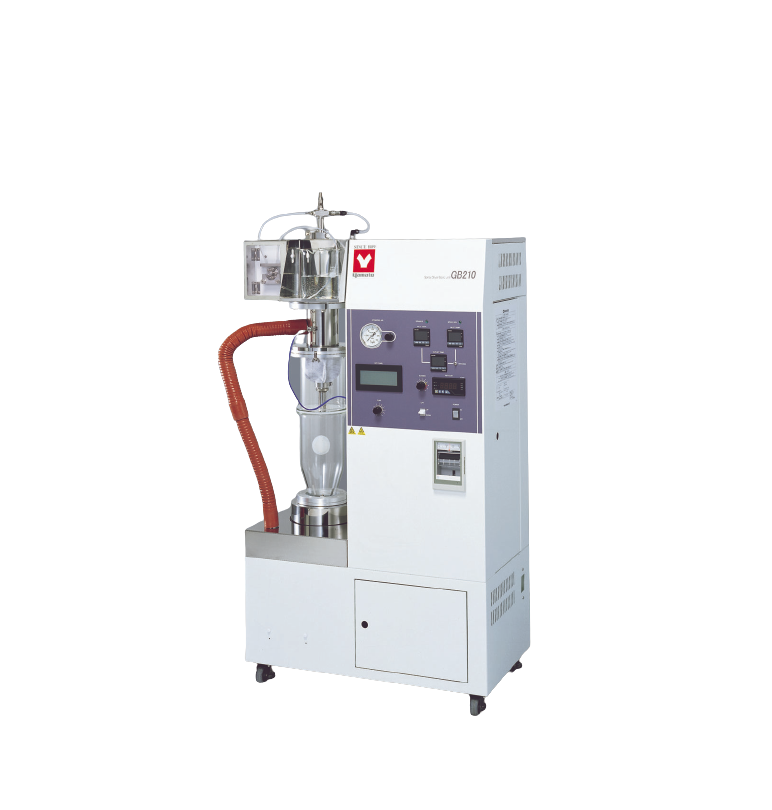

Yamato GB210-B Pulvis Mini Bed 小型喷射烘干器 (0.3MPa)

Temp. adjusting range: 40 to 220°C (inlet temperature), 0 to °60(Outlet temperature)

Temperature adjusting accuracy: Inlet temperature±1°C

Spraying system: Two-way nozzle, Nozzle No. 1A as standard

Drying air amount adjusting range: 0 to 0.7m3/min

Spray air pressure adjusting range: 0 to 0.3MPa

Liquid sending pump flow rate range: 0 to 26mL/min

External output: Inlet temperature, Outlet temperature, Temperature outlet (4-20 mA)

Automatic lift: Moving up/down of glass chamber automatic lift

Temperature adjusting device: PID digital temperature adjusting device

Touch panel: Blower, Heater, Liquid sending pump, Pulse jet switch, Error display

Control select switch: Inlet temperature, Output temperature control switch (Outlet temp. control is conditional)

Temperature sensor: K-thermocouple

Heater: 2.0kW (at200V) to 2.88kW (at240V)

Liquid sending pump: Fixed amount peristaltic pump

Spraying air pump: Spraying air compressor (Sold separately) is used

Service outlet: For stirrer: AC100V, Max. 2A

Suction blower: Bypass blower, Brushless DC motor

Filter: Suction filter, Exhaust filter

Spray nozzle cooling mechanism: Connector: nipple×2, O.D.: ø10.5mm

Spray air connection diameter: Nipple diameter: ø7mm

Exhaust connecting diameter: ø50mm

Safety device: Inlet/Outlet temperature overheat, Sample feed reverse rotation mechanism, Over current electric leakage breaker, Nozzle connection error

Accessories: Silicon tube (with a stopper)×3, Tiron tube (with a stopper)×2, Exhaust duct (with one hose band)×1, Outlet temperature sensor, Spray air tube, Sample box, Static electricity removal earth, Teflon braided hose 5m (with two hose bands), Container table

External dimensions(W×D×H mm): 760×420×1350mm

Power Source: AC220V 17A Single phase

Weight: 110kg
