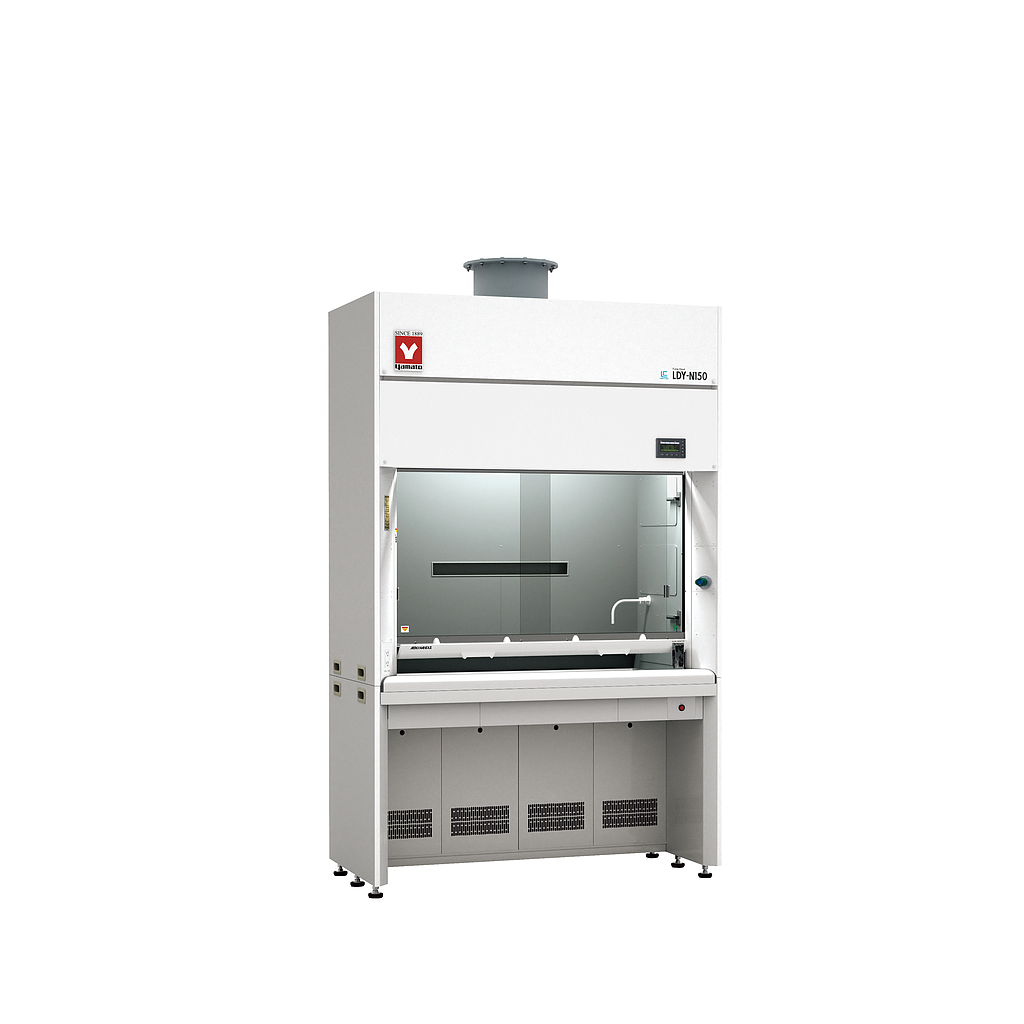

Yamato LDY-N120SH 通风柜 (5~13 m3/min)

Exterior: Cold-rolled steel plate (chemical resistance baking finish)

Interior: Non-asbestos and non-combustible decorative board (Baffle plate: multi slit system)

Working surface material: Ceramitite (S)

Glass window: Tempered glass 5mm (Up&Down : Balance weight/L&R : Rail slide)

Water faucet: Single type 1pc

Outlet: AC115/220V with dual grounding wire (dropout prevention) 1pc

Fluorescent lamp: 32W 1set

Safety feature: Exhaust delay timer, Door falling prevention stopper, Flow monitor, Emergency exhaust switch

Atomosphere conditions: Room temp. : 5 to 35 oC, Room humidity : 20 to 80% (No condensation)

Option: Gas tap, LED, Safety mechanism

Standard discharge air quantity: 5 to 13 m3/min

Static pressure: 36Pa (at 13 m3/min)

Motor damper: Approx. 7 sec from fully open to fully closed (50/60Hz)

External dimensions(W×D×H mm): 1200×750×2605mm

Power Source: AC115/220V

Weight: 270kg
